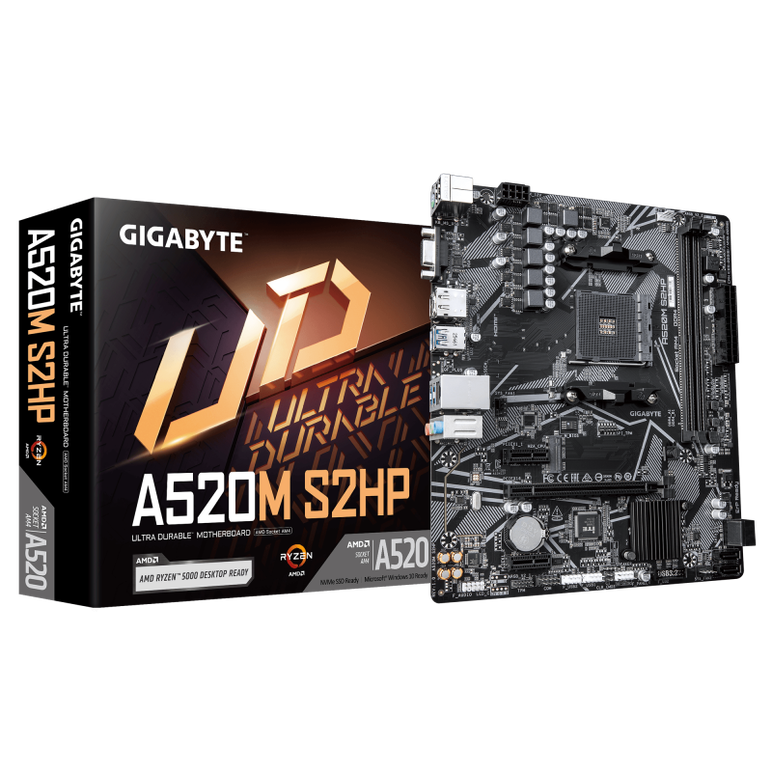

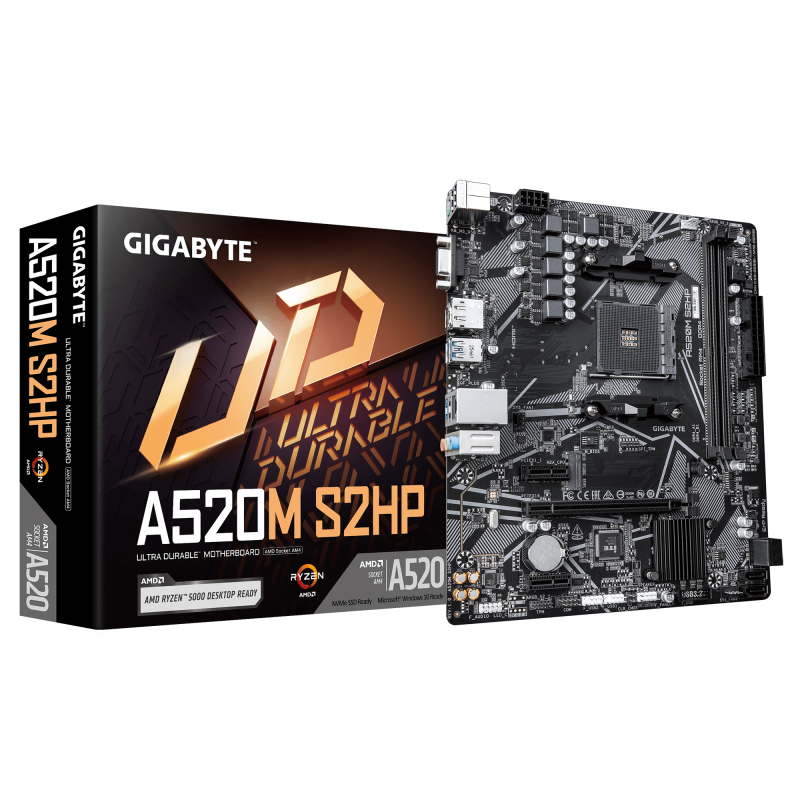

Placa de baza gigabyte a520m s2hp, socket am4, ddr4, micro-atx
Conectează-te ca să te putem notifica când primești un răspuns
Specificații
Acpi Version:
- 5.0
Atx Power Connector (24-pin):
- Yes
Audio Output Channels:
- 7.1 channels
Batteries Included:
- Yes
Battery Capacity:
- 220 mAh
Battery Technology:
- Lithium-Manganese Dioxide (LiMnO2)
Battery Type:
- CR2032
Battery Weight:
- 3 g
Bios Memory Size:
- 128 Mbit
Bios Type:
- UEFI AMI
Clear Cmos Button:
- Yes
Clear Cmos Jumper:
- Yes
Compatible Processor Series:
- AMD Ryzen 3000 Series
Component For:
- PC
Country Of Origin:
- China
Cpu Fan Connector:
- Yes
Depth:
- 205 mm
Desktop Management Interface (dmi) Version:
- 2.7
Dvi-d Ports Quantity:
- 0
Ecc сompatibility:
- ECC & Non-ECC
Ethernet Interface Type:
- Gigabit Ethernet
Ethernet Lan:
- Yes
Ethernet Lan (rj-45) Ports:
- 1
Hdcp:
- Yes
Hdmi Ports Quantity:
- 1
Height:
- 35 mm
Lithium Weight Per Battery:
- 0.07 g
Maximum Internal Memory:
- 64 GB
Maximum Number Of Smp Processors:
- 1
Memory Channels:
- Dual-channel
Memory Slots Type:
- DIMM
Motherboard Chipset:
- AMD A520
Motherboard Chipset Family:
- AMD
Motherboard Form Factor:
- micro ATX
Number Of Battery Cells:
- 1
Number Of Chassis Fan Connectors:
- 2
Number Of M.2 (m) Slots:
- 1
Number Of Memory Slots:
- 2
Number Of Rgb Led Pin Headers:
- 4
Number Of Sata Connectors:
- 0
Number Of Sata Ii Connectors:
- 0
Number Of Sata Iii Connectors:
- 4
On-board Graphics Card:
- No
Package Depth:
- 235 mm
Package Height:
- 52 mm
Package Weight:
- 772 g
Package Width:
- 265 mm
Pci Express X1 (gen 3.x) Slots:
- 2
Pci Express X16 (gen 3.x) Slots:
- 1
Power Fan Connector:
- Yes
Processor Manufacturer:
- AMD
Processor Socket:
- Socket AM4
Producator:
GIGABYTE
Product Colour:
- Black
Products Per Shipping (inner) Case:
- 1 pc(s)
Ps/2 Ports Quantity:
- 1
Raid Levels:
- 0, 1, 10
Raid Support:
- Yes
Rgb Led Pin Header:
- Yes
Supported Memory Clock Speed (max):
- 3200 MHz
Supported Memory Clock Speeds:
- 2133,2400,2667,2933,3200,3333,3600,4866 MHz
Supported Memory Types:
- DDR4-SDRAM
Supported Processor Sockets:
- Socket AM4
Supported Storage Drive Interfaces:
- M.2, PCI Express 3.0, SATA
System Management Bios (smbios) Version:
- 2.7
Usb 2.0 Connectors:
- 2
Usb 2.0 Ports Quantity:
- 2
Usb 3.2 Gen 1 (3.1 Gen 1) Connectors:
- 1
Usb 3.2 Gen 1 (3.1 Gen 1) Type-a Ports Quantity:
- 4
Usb 3.2 Gen 1 (3.1 Gen 1) Type-c Ports Quantity:
- 0
Usb 3.2 Gen 2 (3.1 Gen 2) Connectors:
- 0
Usb 3.2 Gen 2 (3.1 Gen 2) Type-a Ports Quantity:
- 0
Usb 3.2 Gen 2 (3.1 Gen 2) Type-c Ports Quantity:
- 0
Vga (d-sub) Ports Quantity:
- 0
Warranty Period:
- 3 year(s)
Wi-fi:
- No
Width:
- 244 mm
Descriere
Placa de baza Gigabyte A520M S2HP
