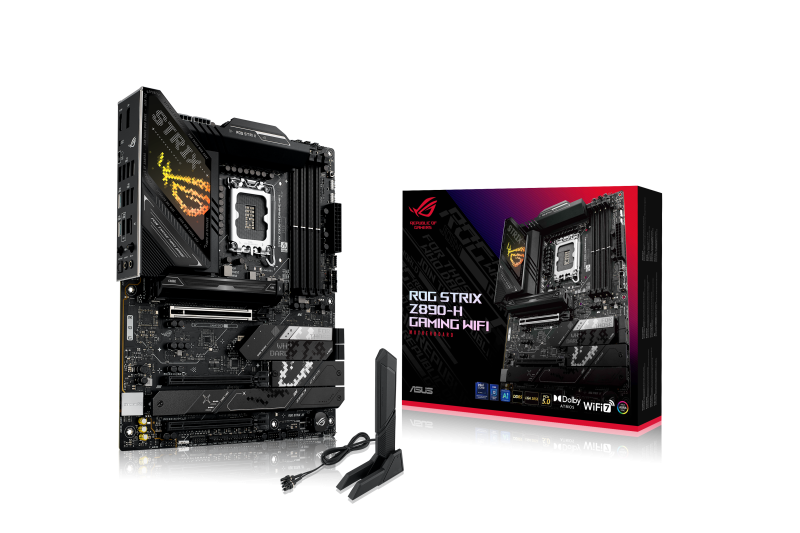

Placa de baza asus rog strix z890-h gaming wifi
Conectează-te ca să te putem notifica când primești un răspuns
Specificații
12v Power Connector:
- Yes
1st M.2 Highest Pci Express Generation:
- 5.0
1st M.2 Largest Key Size:
- 22110
2nd M.2 Highest Pci Express Generation:
- 4.0
2nd M.2 Largest Key Size:
- 2580
3rd M.2 Highest Pci Express Generation:
- 4.0
3rd M.2 Largest Key Size:
- 22110
4th M.2 Highest Pci Express Generation:
- 4.0
4th M.2 Largest Key Size:
- 2280
Antenna Included:
- Yes
Atx Power Connector (24-pin):
- Yes
Audio Chip:
- Realtek ALC1220P
Audio Output Channels:
- 7.1 channels
Bios Memory Size:
- 256 Mbit
Bios Type:
- UEFI AMI
Bluetooth Version:
- 5.4
Cables Included:
- SATA
Chassis Intrusion Connector:
- Yes
Compatible Processor Series:
- Intel Core Ultra (Series 2)
Component For:
- PC
Cpu Fan Connector:
- Yes
Depth:
- 24.4 mm
Displayports Quantity:
- 1
Dvi-d Ports Quantity:
- 0
Ecc сompatibility:
- Non-ECC
Eps Power Connector (8-pin):
- Yes
Ethernet Interface Type:
- 5 Gigabit Ethernet
Ethernet Lan:
- Yes
Front Panel Audio Connector:
- Yes
Front Panel Connector:
- Yes
Hdmi Ports Quantity:
- 1
Maximum Internal Memory:
- 256 GB
Memory Channels:
- Dual-channel
Memory Slots Type:
- DIMM
Microphone In:
- Yes
Motherboard Chipset:
- Intel Z890
Motherboard Chipset Family:
- Intel
Motherboard Form Factor:
- ATX
Number Of Chassis Fan Connectors:
- 5
Number Of Cpu Fan Connectors:
- 2
Number Of Eps Power Connectors (8-pin):
- 2
Number Of Hdds Supported:
- 4
Number Of M.2 (m) Slots:
- 4
Number Of Memory Slots:
- 4
Number Of Sata Iii Connectors:
- 4
Number Of Storage Drives Supported:
- 8
Number Of Temperature Sensor Headers:
- 1
Package Depth:
- 273 mm
Package Height:
- 68 mm
Package Weight:
- 2.52 kg
Package Width:
- 353 mm
Parallel Processing Technology Support:
- Not supported
Pci Express X16 (gen 4.x) Slots:
- 2
Pci Express X16 (gen 5.x) Slots:
- 1
Processor Manufacturer:
- Intel
Processor Socket:
- LGA 1851 (Socket V1)
Producator:
Asus
Raid Levels:
- 0, 1, 5, 10
Raid Support:
- Yes
S/pdif Out Port:
- Yes
Supported Memory Types:
- DDR5-SDRAM
Supported Processor Sockets:
- LGA 1851
Supported Storage Drive Interfaces:
- M.2, SATA III
Supported Storage Drive Types:
- HDD & SSD
Thunderbolt Headers:
- 1
Top Wi-fi Standard:
- Wi-Fi 7 (802.11be)
Unbuffered Memory:
- Yes
Usb 2.0 Connectors:
- 2
Usb 2.0 Ports Quantity:
- 0
Usb 3.2 Gen 1 (3.1 Gen 1) Connectors:
- 1
Usb 3.2 Gen 1 (3.1 Gen 1) Type-a Ports Quantity:
- 4
Usb 3.2 Gen 1 (3.1 Gen 1) Type-c Ports Quantity:
- 0
Usb 3.2 Gen 2 (3.1 Gen 2) Connectors:
- 0
Usb 3.2 Gen 2 (3.1 Gen 2) Type-a Ports Quantity:
- 4
Usb 3.2 Gen 2 (3.1 Gen 2) Type-c Ports Quantity:
- 0
Usb 3.2 Gen 2x2 Connectors:
- 1
Usb 3.2 Gen 2x2 Type-c Ports Quantity:
- 2
Vga (d-sub) Ports Quantity:
- 0
Wi-fi:
- Yes
Wi-fi Standards:
- Wi-Fi 7 (802.11be)
Width:
- 30.5 mm
Wifi-ap Antenna Jack:
- 1
Windows Operating Systems Supported:
- Windows 11
Descriere
Placa de baza Asus ROG STRIX Z890-H GAMING WIFI
