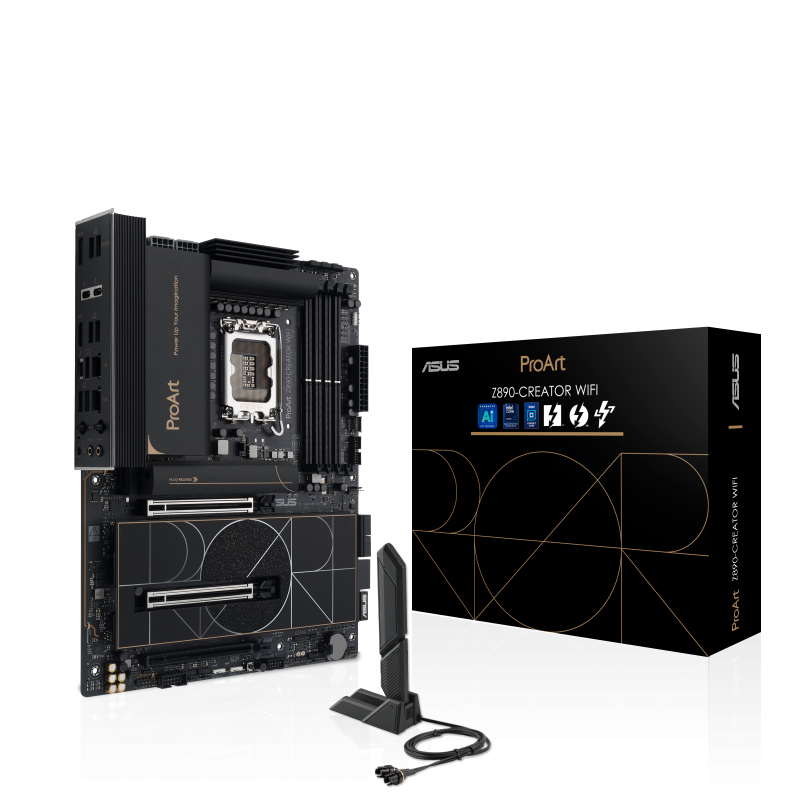

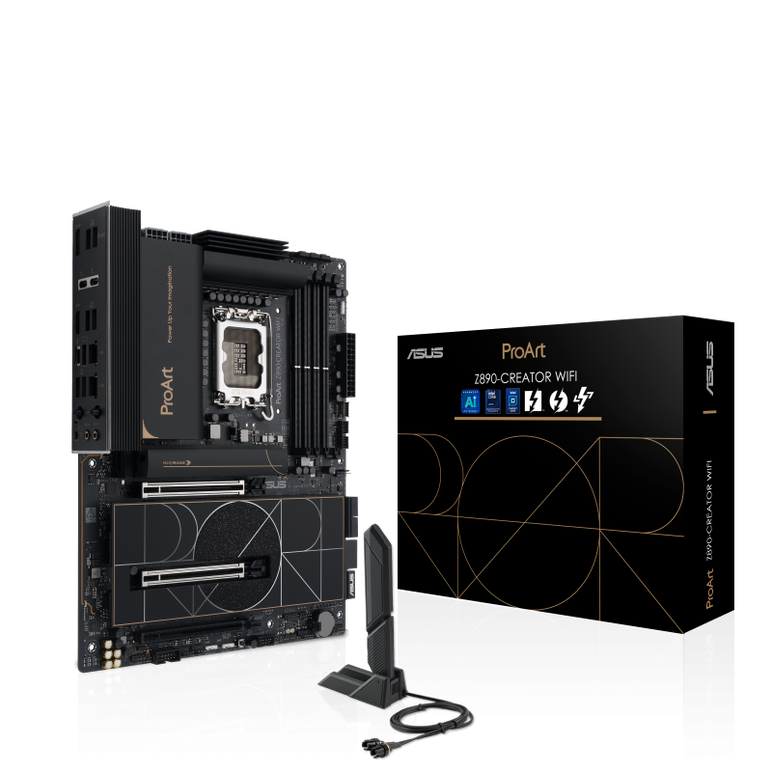

Placa de baza asus proart z890-creator wifi lga1851, 4x ddr5, 1x hdmi 3x intel thunderbolt, 2x pcie 5.0 x16 1x pcie 4.0 x16, 5x m.2, 4x sata 6gb/s, atx
Conectează-te ca să te putem notifica când primești un răspuns
Specificații
12v Power Connector:
- Yes
1st M.2 Highest Pci Express Generation:
- 5.0
1st M.2 Largest Key Size:
- 22110
2nd M.2 Highest Pci Express Generation:
- 4.0
2nd M.2 Largest Key Size:
- 2280
3rd M.2 Highest Pci Express Generation:
- 4.0
3rd M.2 Largest Key Size:
- 2280
4th M.2 Highest Pci Express Generation:
- 4.0
4th M.2 Largest Key Size:
- 2280
5th M.2 Highest Pci Express Generation:
- 4.0
5th M.2 Largest Key Size:
- 2280
Antenna Included:
- Yes
Atx Power Connector (24-pin):
- Yes
Audio Chip:
- Realtek ALC1220P
Audio Output Channels:
- 7.1 channels
Bios Memory Size:
- 256 Mbit
Bios Type:
- UEFI AMI
Chassis Intrusion Connector:
- Yes
Clear Cmos Button:
- Yes
Compatible Processor Series:
- Intel Core Ultra (Series 2)
Component For:
- PC
Cpu Fan Connector:
- Yes
Displayport Version:
- 2.1
Displayports Quantity:
- 1
Dvi-d Ports Quantity:
- 0
Ecc сompatibility:
- Non-ECC
Eps Power Connector (8-pin):
- Yes
Ethernet Interface Type:
- 2.5 Gigabit Ethernet, 10 Gigabit Ethernet
Ethernet Lan:
- Yes
Front Panel Audio Connector:
- Yes
Front Panel Connector:
- Yes
Hdmi Ports Quantity:
- 1
Hdmi Version:
- 2.1
Line-in:
- Yes
Maximum Internal Memory:
- 192 GB
Maximum Resolution:
- 7680 x 4320 pixels
Mb-format:
- ATX
Mb-socket:
- LGA1851
Memory Channels:
- Dual-channel
Memory Slots Type:
- DIMM
Motherboard Chipset:
- Intel Z890
Motherboard Chipset Family:
- Intel
Motherboard Form Factor:
- ATX
Msata Ports Quantity:
- 0
Number Of Chassis Fan Connectors:
- 5
Number Of Com Connectors:
- 1
Number Of Cpu Fan Connectors:
- 2
Number Of Eps Power Connectors (8-pin):
- 2
Number Of Hdds Supported:
- 4
Number Of M.2 (m) Slots:
- 5
Number Of Memory Slots:
- 4
Number Of Rgb Led Pin Headers:
- 3
Number Of Sata Connectors:
- 0
Number Of Sata Ii Connectors:
- 0
Number Of Sata Iii Connectors:
- 4
Number Of Storage Drives Supported:
- 9
Number Of Temperature Sensor Headers:
- 1
Number Of Water Pump Connectors:
- 1
On-board Graphics Card:
- No
Onboard-cpu:
- No
Parallel Processing Technology Support:
- Not supported
Pci:
- 0
Pci Express X16 (gen 4.x) Slots:
- 1
Pci Express X16 (gen 5.x) Slots:
- 2
Pci-ex1:
- 0
Pci-ex16:
- 3
Processor Manufacturer:
- Intel
Processor Socket:
- LGA 1851 (Socket V1)
Producator:
Asus
Raid Levels:
- 0, 1, 5, 10
Raid Support:
- Yes
Ram-slots:
- 4
Rgb Led Pin Header:
- Yes
Serial-or-paralel:
- No/No
Supported Memory Clock Speed (max):
- 9066 MHz
Supported Memory Clock Speeds:
- 9066 MHz
Supported Memory Types:
- DDR5-SDRAM
Supported Processor Sockets:
- LGA 1851
Supported Storage Drive Interfaces:
- M.2, SATA III
Supported Storage Drive Types:
- HDD & SSD
Thunderbolt Ports Quantity:
- 3
Top Wi-fi Standard:
- Wi-Fi 7 (802.11be)
Tpm Connector:
- Yes
Unbuffered Memory:
- Yes
Usb 2.0 Connectors:
- 1
Usb 2.0 Ports Quantity:
- 1
Usb 3.2 Gen 1 (3.1 Gen 1) Connectors:
- 1
Usb 3.2 Gen 1 (3.1 Gen 1) Type-a Ports Quantity:
- 0
Usb 3.2 Gen 1 (3.1 Gen 1) Type-c Ports Quantity:
- 0
Usb 3.2 Gen 2 (3.1 Gen 2) Connectors:
- 1
Usb 3.2 Gen 2 (3.1 Gen 2) Type-a Ports Quantity:
- 6
Usb 3.2 Gen 2 (3.1 Gen 2) Type-c Ports Quantity:
- 0
Usb3:
- 4-8
Vga (d-sub) Ports Quantity:
- 0
Wi-fi:
- Yes
Wifi-ap Antenna Jack:
- 2
Descriere
Placa de Baza ASUS PROART Z890-CREATOR WIFI LGA1851, 4x DDR5, 1x HDMI 3x Intel Thunderbolt, 2x PCIE 5.0 x16 1x PCIE 4.0 x16, 5x M.2, 4x SATA 6GB/s, ATX
