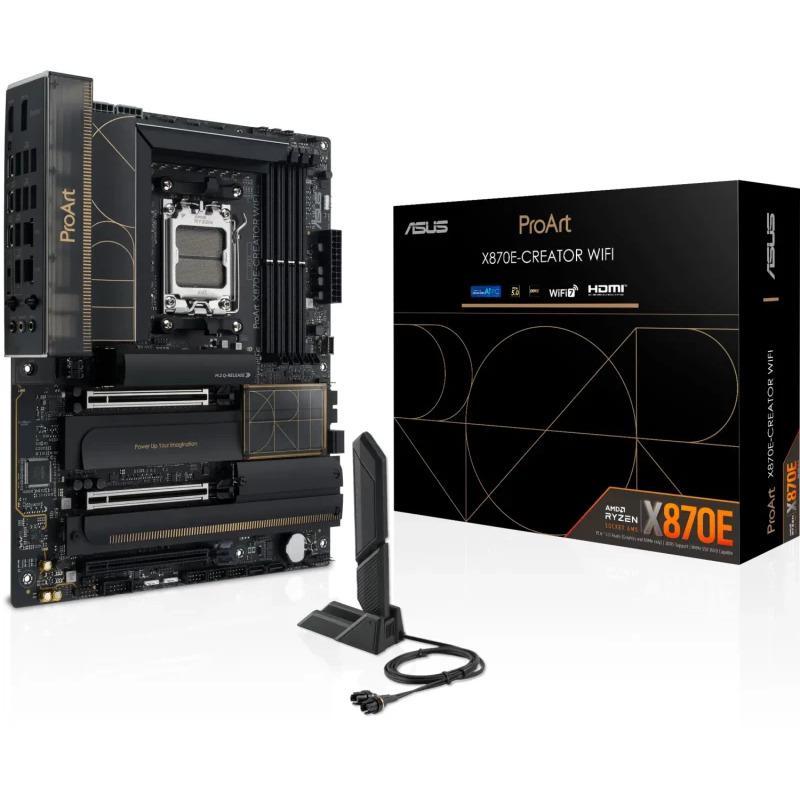

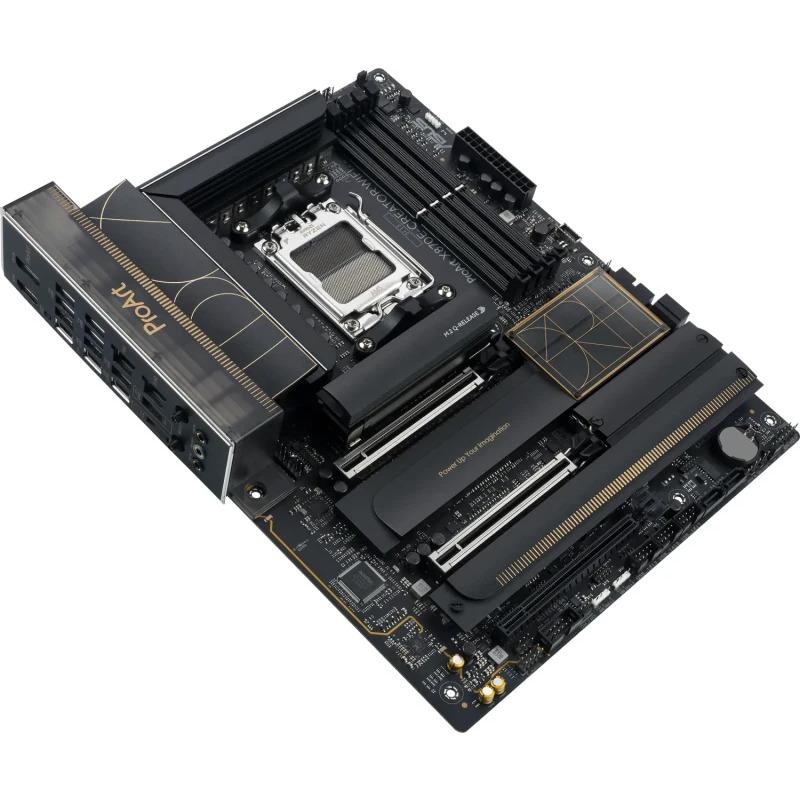

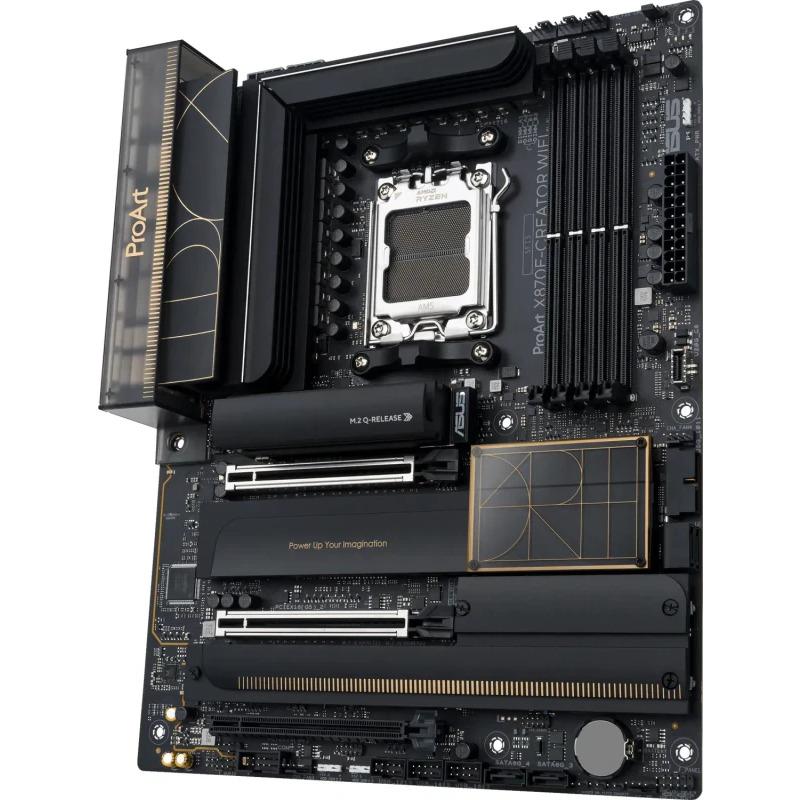

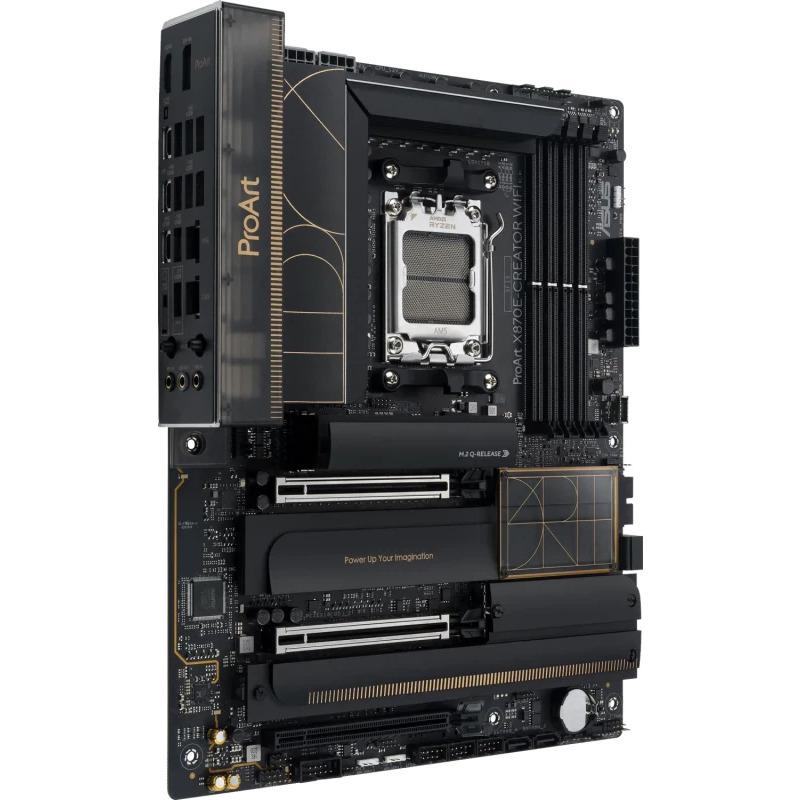

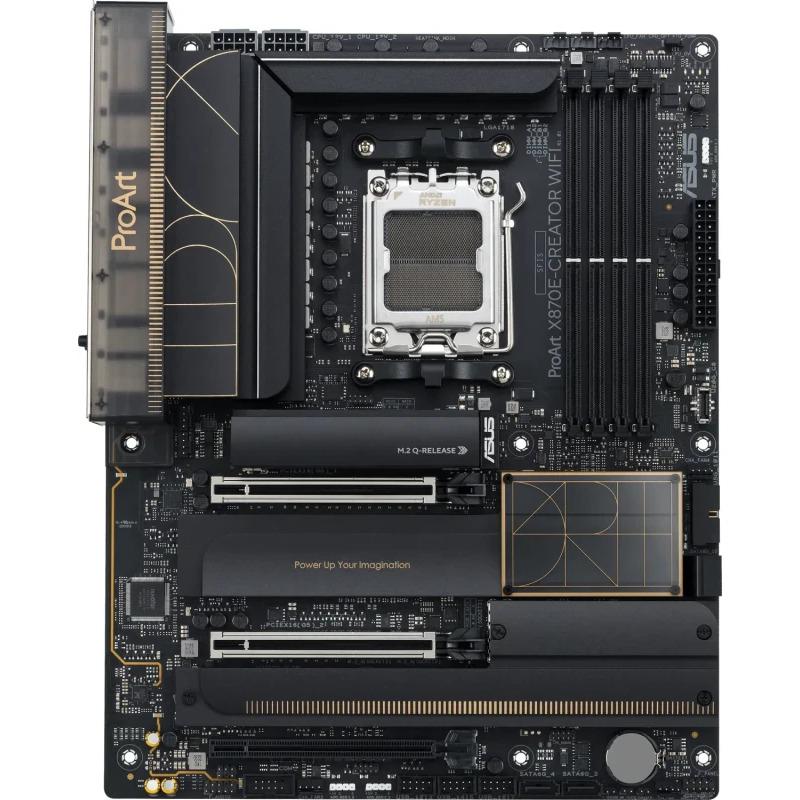

Placa de baza asus proart x870e-creator wifi am5
Conectează-te ca să te putem notifica când primești un răspuns
Specificații
12v Power Connector:
- Yes
Atx Power Connector (24-pin):
- Yes
Audio Chip:
- Realtek S1220A
Audio Output Channels:
- 7.1 channels
Bios Memory Size:
- 256 Mbit
Bios Type:
- UEFI AMI
Bluetooth Version:
- 5.4
Cables Included:
- DisplayPort, SATA
Chassis Intrusion Connector:
- Yes
Clear Cmos Button:
- Yes
Component For:
- PC
Cpu Fan Connector:
- Yes
Depth:
- 244 mm
Displayports Quantity:
- 1
Dvi-d Ports Quantity:
- 0
Ecc сompatibility:
- ECC & Non-ECC
Ethernet Interface Type:
- 2.5 Gigabit Ethernet, 10 Gigabit Ethernet
Ethernet Lan:
- Yes
Ethernet Lan (rj-45) Ports:
- 2
Front Panel Audio Connector:
- Yes
Hdmi Ports Quantity:
- 1
Maximum Internal Memory:
- 192 GB
Memory Channels:
- Dual-channel
Memory Slots Type:
- DIMM
Microphone In:
- Yes
Motherboard Chipset:
- AMD X870E
Motherboard Chipset Family:
- AMD
Motherboard Form Factor:
- ATX
Number Of Chassis Fan Connectors:
- 5
Number Of Com Connectors:
- 1
Number Of Hdds Supported:
- 4
Number Of M.2 (m) Slots:
- 4
Number Of Memory Slots:
- 4
Number Of Sata Iii Connectors:
- 4
Number Of Storage Drives Supported:
- 8
Onboard-cpu:
- No
Parallel Processing Technology Support:
- Not supported
Pci:
- 0
Pci Express X16 (gen 4.x) Slots:
- 1
Pci Express X16 (gen 5.x) Slots:
- 2
Processor Manufacturer:
- AMD
Processor Socket:
- Socket AM5
Producator:
Asus
Raid Levels:
- 0, 1, 10, 5
Raid Support:
- Yes
Serial-or-paralel:
- No/No
Supported Memory Types:
- DDR5-SDRAM
Supported Processor Sockets:
- Socket AM5
Supported Storage Drive Interfaces:
- M.2, SATA III
Supported Storage Drive Types:
- HDD & SSD
Top Wi-fi Standard:
- Wi-Fi 7 (802.11be)
Unbuffered Memory:
- Yes
Usb 2.0 Connectors:
- 3
Usb 2.0 Ports Quantity:
- 1
Usb 3.2 Gen 1 (3.1 Gen 1) Connectors:
- 1
Usb 3.2 Gen 1 (3.1 Gen 1) Type-a Ports Quantity:
- 0
Usb 3.2 Gen 1 (3.1 Gen 1) Type-c Ports Quantity:
- 0
Usb 3.2 Gen 2 (3.1 Gen 2) Connectors:
- 0
Usb 3.2 Gen 2 (3.1 Gen 2) Type-a Ports Quantity:
- 7
Usb 3.2 Gen 2 (3.1 Gen 2) Type-c Ports Quantity:
- 0
Usb 3.2 Gen 2x2 Connectors:
- 1
Usb 3.2 Gen 2x2 Type-c Ports Quantity:
- 1
Usb4 Gen 2x2 Ports Quantity:
- 2
Vga (d-sub) Ports Quantity:
- 0
Wi-fi:
- Yes
Wi-fi Standards:
- Wi-Fi 7 (802.11be)
Width:
- 305 mm
Wifi-ap Antenna Jack:
- 1
Windows Operating Systems Supported:
- Windows 11
Comunicatii
Bluetooth:
Yes
Descriere

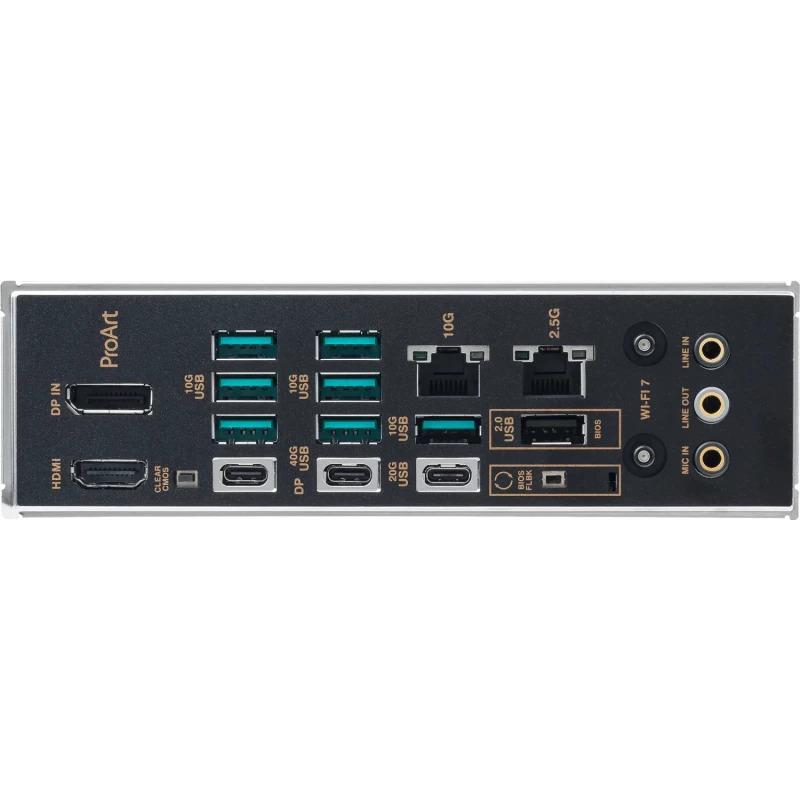

Placa de Baza ASUS PROART X870E-CREATOR WIFI AM5, 4x DDR5, 1x HDMI 2x USB4, 2x PCIE 5.0 x16 3x PCIE 4.0 x16, 4x M.2, 4x SATA 6GB/s, ATX
Recenzii
Nu au fost găsite recenzii
