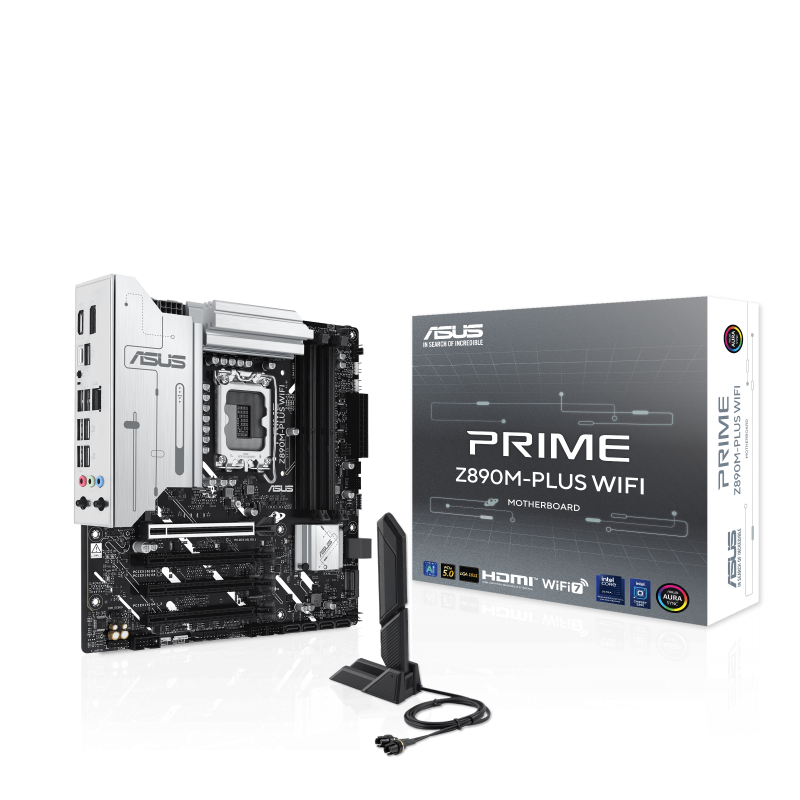

Placa de baza asus prime z890m-plus wifi lga1851
-9%
Conectează-te ca să te putem notifica când primești un răspuns
Specificații
12v Power Connector:
- Yes
Atx Power Connector (24-pin):
- Yes
Audio Output Channels:
- 7.1 channels
Bios Memory Size:
- 256 Mbit
Bios Type:
- UEFI AMI
Bluetooth Version:
- 5.4
Cables Included:
- SATA
Canale Audio:
- N/A
Chassis Intrusion Connector:
- Yes
Chipset Audio Integrat:
- Realtek
Compatible Processor Series:
- Intel Core Ultra (Series 2)
Component For:
- PC
Cpu Fan Connector:
- Yes
Depth:
- 244 mm
Displayports Quantity:
- 1
Dvi-d Ports Quantity:
- 0
Ecc сompatibility:
- Non-ECC
Ethernet Interface Type:
- 2.5 Gigabit Ethernet
Ethernet Lan:
- Yes
Ethernet Lan (rj-45) Ports:
- 1
Format:
- Micro-ATX (mATX)
Front Panel Audio Connector:
- Yes
Gaming:
- Nu
Hdmi:
- Da
Hdmi Ports Quantity:
- 1
Maximum Internal Memory:
- 192 GB
Mb-format:
- micro-ATX
Mb-socket:
- LGA1851
Memorie Maxima:
- N/A
Memory Channels:
- Dual-channel
Memory Slots Type:
- DIMM
Microphone In:
- Yes
Model Chipset:
- Z890
Motherboard Chipset:
- Intel Z890
Motherboard Chipset Family:
- Intel
Motherboard Form Factor:
- micro ATX
Msata Ports Quantity:
- 0
Numar Sloturi Memorie:
- 4
Number Of Chassis Fan Connectors:
- 4
Number Of Com Connectors:
- 1
Number Of Hdds Supported:
- 6
Number Of M.2 (m) Slots:
- 3
Number Of Memory Slots:
- 4
Number Of Sata Connectors:
- 0
Number Of Sata Ii Connectors:
- 0
Number Of Sata Iii Connectors:
- 6
Number Of Storage Drives Supported:
- 9
On-board Graphics Card:
- No
Onboard-cpu:
- No
Package Depth:
- 275 mm
Package Height:
- 67.5 mm
Package Weight:
- 1.64 kg
Package Width:
- 275 mm
Parallel Processing Technology Support:
- Not supported
Pci:
- 0
Pci Express X16 (gen 4.x) Slots:
- 3
Pci Express X16 (gen 5.x) Slots:
- 1
Pci-ex1:
- 0
Pci-ex16:
- 4
Processor Manufacturer:
- Intel
Processor Socket:
- LGA 1851 (Socket V1)
Producator:
Asus
Product Colour:
- Aluminium, Black
Raid Levels:
- 0, 1, 5, 10
Raid Support:
- Yes
Ram-slots:
- 4
Rj-45 Lan:
- N/A
S/pdif Out Connector:
- Yes
Screws Included:
- Yes
Serial-or-paralel:
- No/No
Sloturi M.2:
- 3
Soclu Procesor:
- Socket 1851
Supported Memory Types:
- DDR5-SDRAM
Supported Processor Sockets:
- LGA 1851
Supported Storage Drive Interfaces:
- M.2, SATA III
Supported Storage Drive Types:
- HDD & SSD
Thunderbolt:
- Nu
Thunderbolt Headers:
- 1
Tip Slot Interfata Grafica:
- N/A
Top Wi-fi Standard:
- Wi-Fi 7 (802.11be)
Tpm Connector:
- Yes
Unbuffered Memory:
- Yes
Usb 2.0 Connectors:
- 2
Usb 2.0 Ports Quantity:
- 2
Usb 3.2 Gen 1 (3.1 Gen 1) Connectors:
- 2
Usb 3.2 Gen 1 (3.1 Gen 1) Type-a Ports Quantity:
- 4
Usb 3.2 Gen 1 (3.1 Gen 1) Type-c Ports Quantity:
- 0
Usb 3.2 Gen 2 (3.1 Gen 2) Connectors:
- 0
Usb 3.2 Gen 2 (3.1 Gen 2) Type-a Ports Quantity:
- 1
Usb 3.2 Gen 2 (3.1 Gen 2) Type-c Ports Quantity:
- 0
Usb 3.2 Gen 2x2 Type-c Ports Quantity:
- 1
Usb Type C:
- Da
Usb3:
- 4-8
Vga (d-sub) Ports Quantity:
- 0
Wi-fi:
- Yes
Wi-fi Standards:
- Wi-Fi 7 (802.11be)
Width:
- 244 mm
Wifi-ap Antenna Jack:
- 1
Windows Operating Systems Supported:
- Windows 11
Memorie
Tip memorie:
DDR5
Descriere
Placa de Baza ASUS PRIME Z890M-PLUS WIFI LGA1851 4x DDR5, 1x DP 1x HDMI 1x USB Type-c, 1x PCIE 5.0 x16 1x PCIE 4.0 x16 (suporta x4) 2x PCIE 4.0 x16 (suporta x1), 3x M.2, 6x SATA 6GB/s, mATX
Recenzii
Nu au fost găsite recenzii
