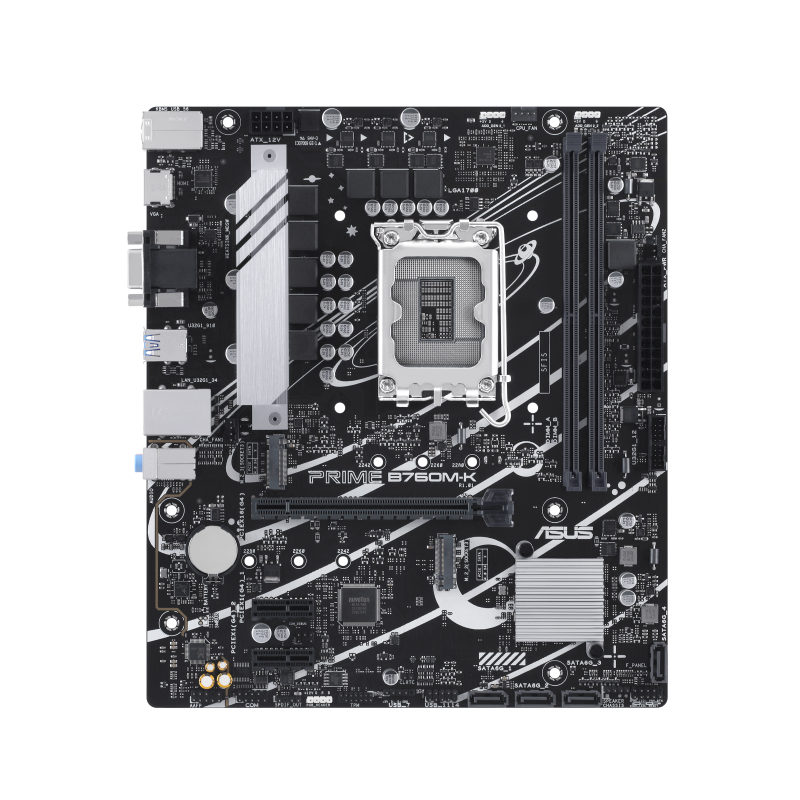

Placa de baza asus prime b760m-k lga 1700, 2x ddr5, 1x vga 1x hdmi, 1x pcie 4.0 x16 1x pcie 4.0 x1, 2x m.2, 4x sata 6gb/s, matx
Conectează-te ca să te putem notifica când primești un răspuns
Specificații
12v Power Connector:
- Yes
Atx Power Connector (24-pin):
- Yes
Audio Output Channels:
- 7.1 channels
Bios Memory Size:
- 128 Mbit
Bios Type:
- UEFI AMI
Cables Included:
- SATA
Component For:
- PC
Cpu Fan Connector:
- Yes
Depth:
- 211 mm
Dvi-d Ports Quantity:
- 0
Ecc сompatibility:
- Non-ECC
Eps Power Connector (8-pin):
- Yes
Ethernet Interface Type:
- 2.5 Gigabit Ethernet
Ethernet Lan:
- Yes
Ethernet Lan (rj-45) Ports:
- 1
Front Panel Audio Connector:
- Yes
Hdmi Ports Quantity:
- 1
Maximum Internal Memory:
- 96 GB
Maximum Number Of Smp Processors:
- 1
Mb-format:
- micro-ATX
Mb-socket:
- 1700
Memory Channels:
- Dual-channel
Memory Slots Type:
- DIMM
Motherboard Chipset:
- Intel B760
Motherboard Chipset Family:
- Intel
Motherboard Form Factor:
- micro ATX
Number Of Chassis Fan Connectors:
- 1
Number Of Com Connectors:
- 1
Number Of Hdds Supported:
- 4
Number Of M.2 (m) Slots:
- 2
Number Of Memory Slots:
- 2
Number Of Sata Iii Connectors:
- 4
Number Of Storage Drives Supported:
- 6
Onboard-cpu:
- No
Package Depth:
- 263 mm
Package Height:
- 51.5 mm
Package Weight:
- 1.01 kg
Package Width:
- 270 mm
Parallel Processing Technology Support:
- Not supported
Pci:
- 0
Pci Express X1 (gen 4.x) Slots:
- 2
Pci Express X16 (gen 4.x) Slots:
- 1
Pci-ex1:
- 2
Pci-ex16:
- 1
Processor Manufacturer:
- Intel
Processor Socket:
- LGA 1700
Producator:
Asus
Ps/2 Ports Quantity:
- 1
Raid Levels:
- 0, 1, 5, 10
Raid Support:
- Yes
Ram-slots:
- 2
Rgb Led Pin Header:
- Yes
S/pdif Out Connector:
- Yes
S/pdif Out Port:
- Yes
Serial-or-paralel:
- No/No
Supported Memory Clock Speed (max):
- 8000 MHz
Supported Memory Clock Speeds:
- 8000,7800,7600,7400,7200,7000,6800,6600,6400,6200,6000,5800,5600,5400,5200,5000,4800 MHz
Supported Memory Types:
- DDR5-SDRAM
Supported Processor Sockets:
- LGA 1700
Supported Storage Drive Interfaces:
- M.2, SATA III
Supported Storage Drive Types:
- HDD & SSD
Tpm Connector:
- Yes
Unbuffered Memory:
- Yes
Usb 2.0 Connectors:
- 2
Usb 2.0 Ports Quantity:
- 2
Usb 3.2 Gen 1 (3.1 Gen 1) Connectors:
- 1
Usb 3.2 Gen 1 (3.1 Gen 1) Type-a Ports Quantity:
- 4
Usb 3.2 Gen 1 (3.1 Gen 1) Type-c Ports Quantity:
- 0
Usb 3.2 Gen 2 (3.1 Gen 2) Connectors:
- 0
Usb 3.2 Gen 2 (3.1 Gen 2) Type-a Ports Quantity:
- 0
Usb 3.2 Gen 2 (3.1 Gen 2) Type-c Ports Quantity:
- 0
Usb3:
- 4-8
Vga (d-sub) Ports Quantity:
- 1
Wi-fi:
- No
Width:
- 244 mm
Windows Operating Systems Supported:
- Windows 10 x64, Windows 11
Descriere
Placa de baza ASUS PRIME B760M-K LGA 1700, 2x DDR5, 1x VGA 1x HDMI, 1x PCIE 4.0 x16 1x PCIE 4.0 x1, 2x M.2, 4x SATA 6GB/s, mATX
