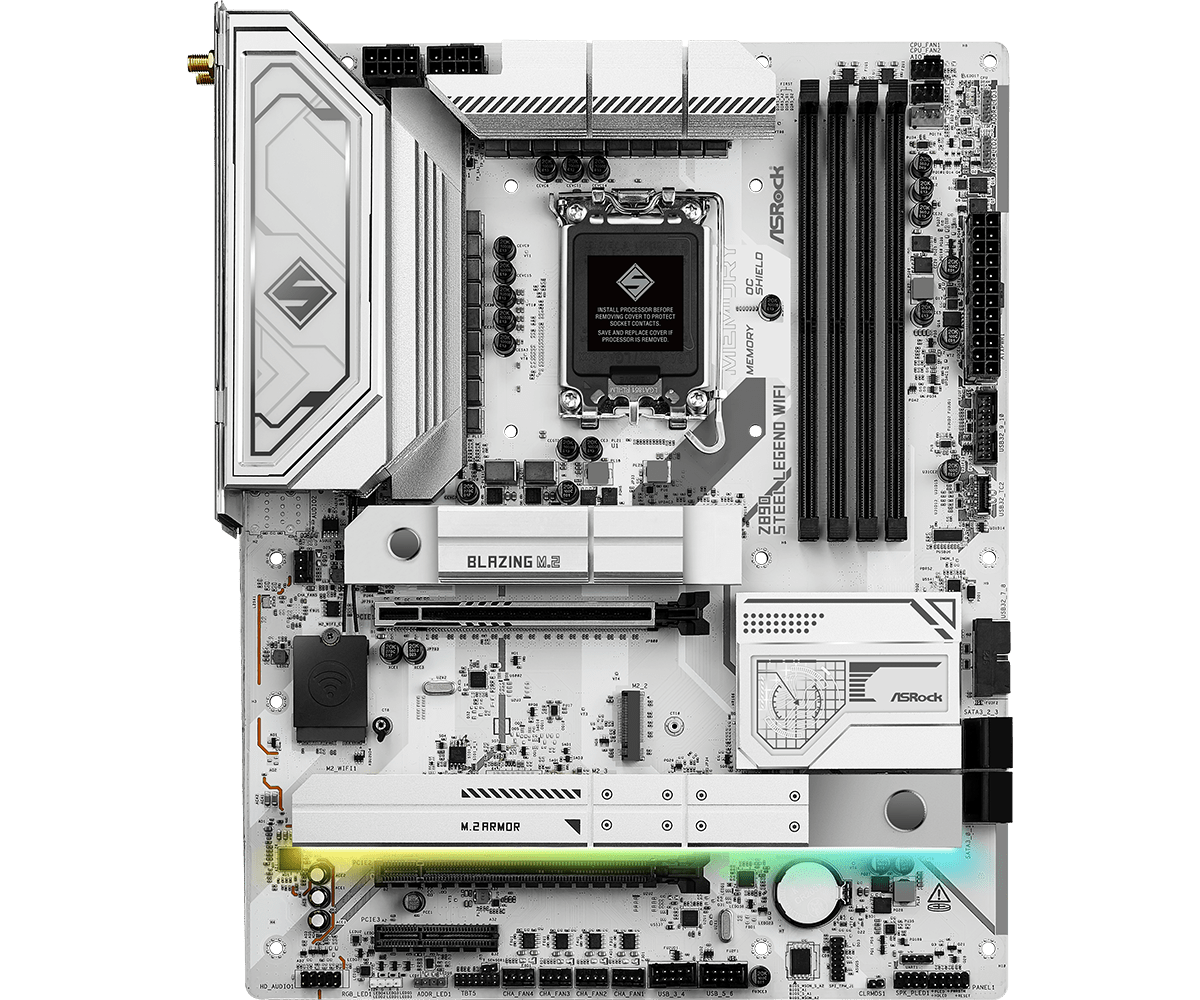

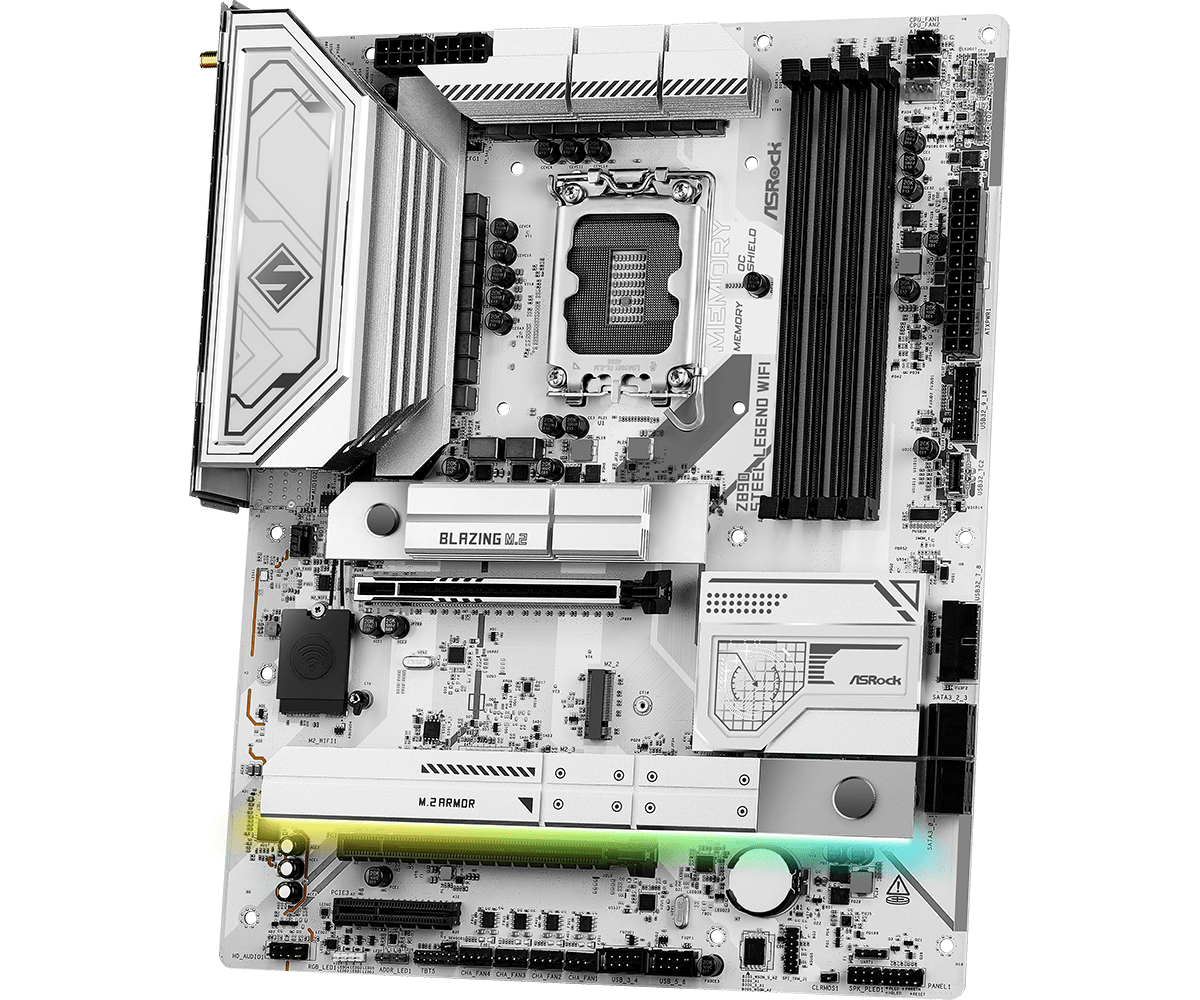

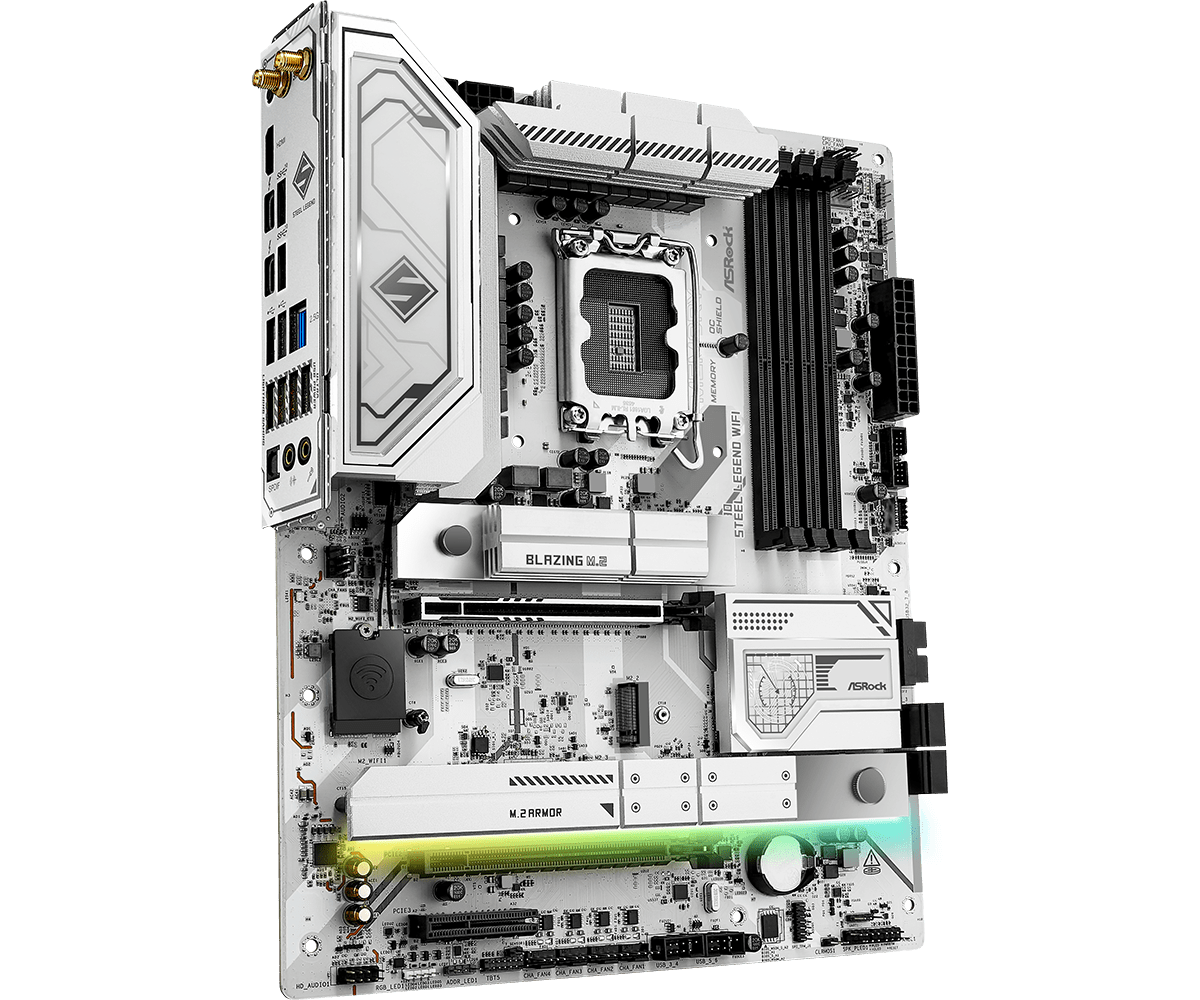

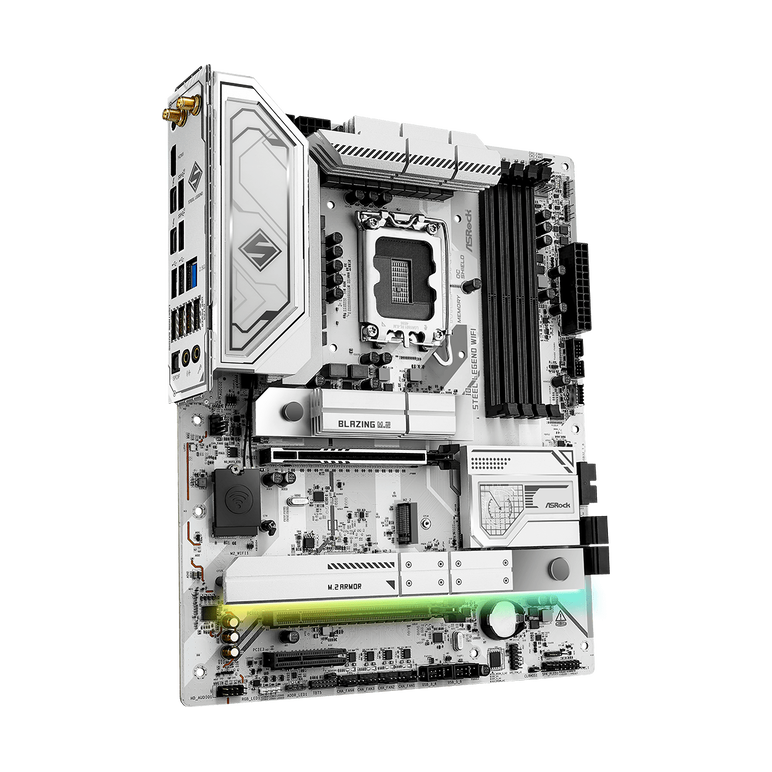

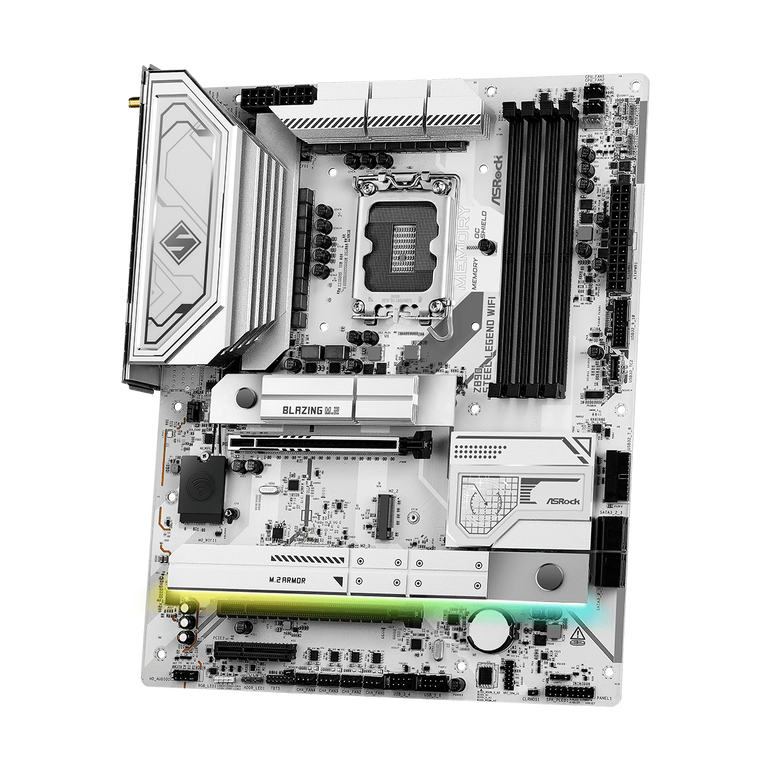

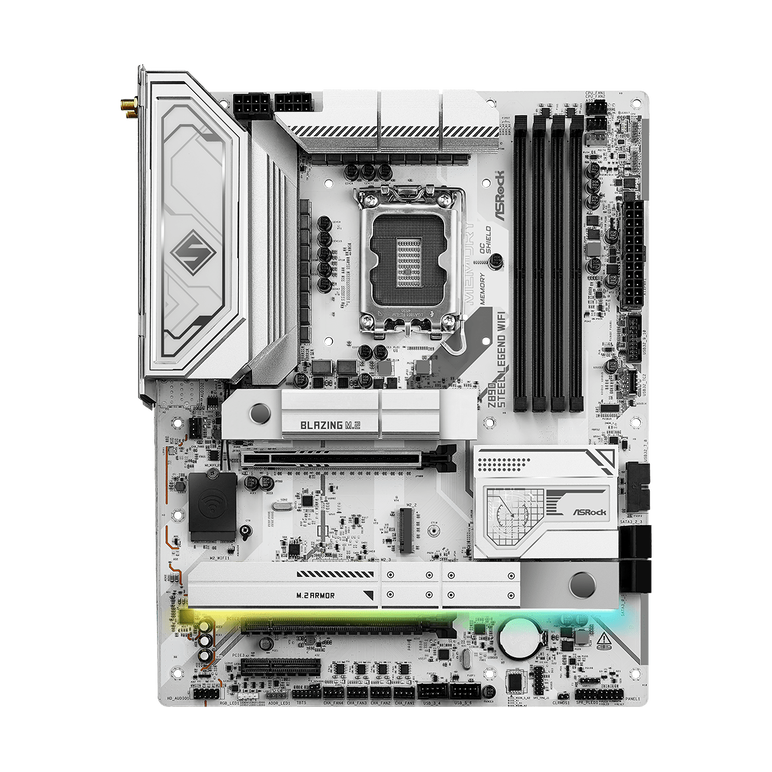

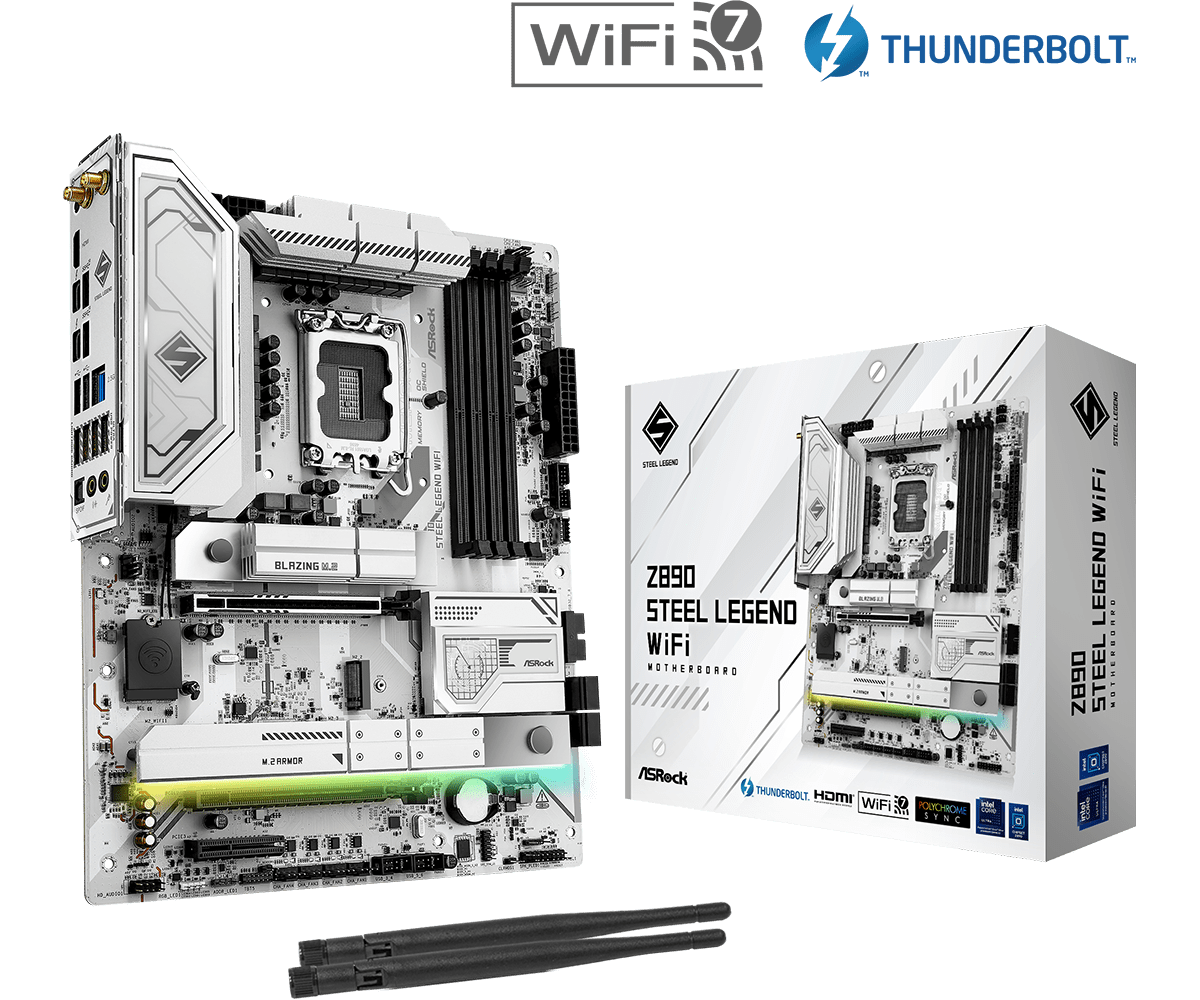

Placa de baza asrock z890 steel legend wifi lga1851
Conectează-te ca să te putem notifica când primești un răspuns
Specificații
Atx Power Connector (24-pin):
- Yes
Audio Chip:
- Realtek ALC1220
Audio Output Channels:
- 7.1 channels
Bios Memory Size:
- 256 Mbit
Bios Type:
- UEFI AMI
Bluetooth Version:
- 5.4
Compatible Processor Series:
- Intel Core Ultra (Series 2)
Component For:
- PC
Cpu Fan Connector:
- Yes
Depth:
- 244 mm
Dvi-d Ports Quantity:
- 0
Ecc сompatibility:
- Non-ECC
Eps Power Connector (8-pin):
- Yes
Ethernet Interface Type:
- 2.5 Gigabit Ethernet
Ethernet Lan:
- Yes
Ethernet Lan (rj-45) Ports:
- 1
Front Panel Audio Connector:
- Yes
Hdmi Ports Quantity:
- 1
Hdmi Version:
- 2.1
Lan Controller:
- Dragon RTL8125BG
Maximum Internal Memory:
- 256 GB
Memory Slots Type:
- DIMM
Microphone In:
- Yes
Motherboard Chipset:
- Intel Z890
Motherboard Chipset Family:
- Intel
Motherboard Form Factor:
- ATX
Number Of Chassis Fan Connectors:
- 5
Number Of Cpu Fan Connectors:
- 2
Number Of Eps Power Connectors (8-pin):
- 2
Number Of Memory Slots:
- 4
Number Of Sata Iii Connectors:
- 4
Onboard-cpu:
- No
Pci:
- 0
Pci Express X16 (gen 4.x) Slots:
- 1
Pci Express X16 (gen 5.x) Slots:
- 1
Pci Express X4 (gen 4.x) Slots:
- 1
Processor Manufacturer:
- Intel
Processor Socket:
- LGA 1851 (Socket V1)
Producator:
ASROCK
Product Colour:
- White
Raid Levels:
- 0, 1, 5, 10
Raid Support:
- Yes
Rgb Led Pin Header:
- Yes
S/pdif Out Port:
- Yes
Serial-or-paralel:
- No/No
Supported Memory Clock Speed (max):
- 9466 MHz
Supported Memory Types:
- DDR5-SDRAM
Supported Storage Drive Interfaces:
- M.2, SATA III
Thunderbolt Ports Quantity:
- 2
Top Wi-fi Standard:
- Wi-Fi 7 (802.11be)
Tpm Connector:
- Yes
Usb 2.0 Connectors:
- 4
Usb 2.0 Ports Quantity:
- 4
Usb 3.2 Gen 1 (3.1 Gen 1) Connectors:
- 4
Usb 3.2 Gen 1 (3.1 Gen 1) Type-a Ports Quantity:
- 4
Usb 3.2 Gen 1 (3.1 Gen 1) Type-c Ports Quantity:
- 0
Usb 3.2 Gen 2 (3.1 Gen 2) Connectors:
- 0
Usb 3.2 Gen 2 (3.1 Gen 2) Type-a Ports Quantity:
- 2
Usb 3.2 Gen 2 (3.1 Gen 2) Type-c Ports Quantity:
- 0
Usb 3.2 Gen 2x2 Connectors:
- 1
Vga (d-sub) Ports Quantity:
- 0
Wi-fi:
- Yes
Width:
- 305 mm
Wifi-ap Antenna Jack:
- 2
Comunicatii
Bluetooth:
Yes
Descriere
Placa de Baza ASROCK Z890 STEEL LEGEND WIFI LGA1851, 4x DDR5, 1x HDMI 2x Intel Thunderbolt, 1x PCIE 5.0 x16 1x PCIE 4.0 x16 1x PCIE 4.0 x4, 4x M.2, 4x SATA 6GB/s, ATX
