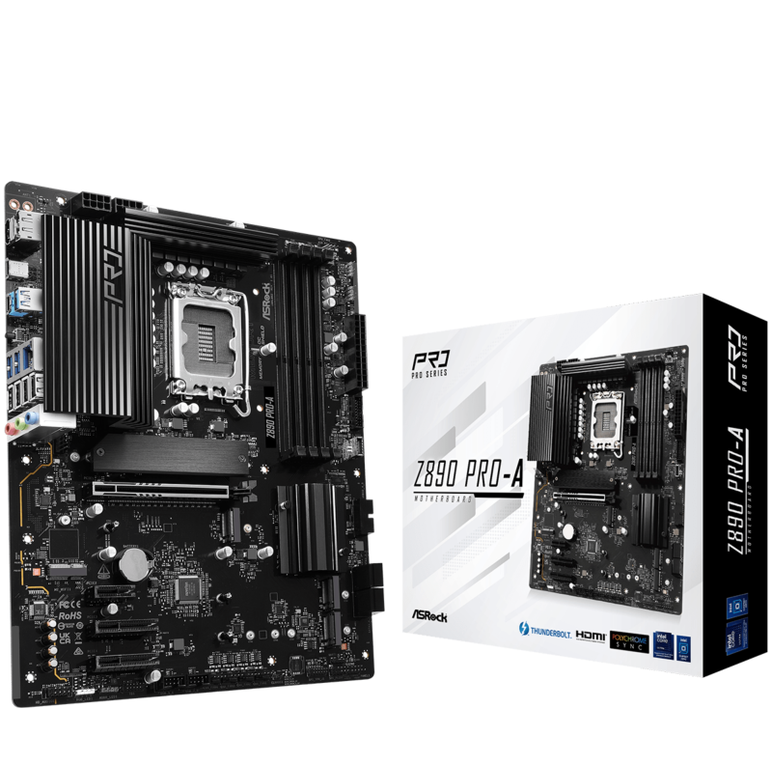

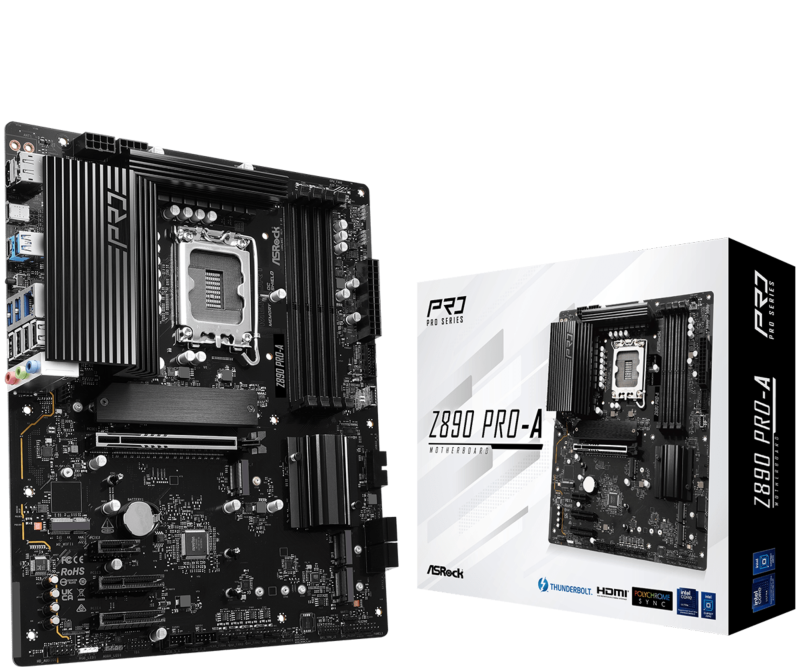

Placa de baza asrock z890 pro-a, socket 1851, ddr5, atx
Conectează-te ca să te putem notifica când primești un răspuns
Specificații
12v Power Connector:
- Yes
Atx Power Connector (24-pin):
- Yes
Audio Chip:
- Realtek ALC897
Audio Connector:
- Yes
Audio Output Channels:
- 7.1 channels
Bios Memory Size:
- 256 Mbit
Bios Type:
- UEFI AMI
Cables Included:
- SATA
Compatible Processor Series:
- Intel Core Ultra (Series 2)
Compliance Certificates:
- Federal Communications Commission (FCC), CE
Component For:
- PC
Cpu Fan Connector:
- Yes
Depth:
- 244 mm
Displayport Version:
- 1.4
Displayports Quantity:
- 1
Dvi-d Ports Quantity:
- 0
Ecc сompatibility:
- Non-ECC
Ethernet Interface Type:
- 2.5 Gigabit Ethernet
Ethernet Lan:
- Yes
Ethernet Lan (rj-45) Ports:
- 1
Front Panel Audio Connector:
- Yes
Hdmi Ports Quantity:
- 1
Headphone Outputs:
- 1
Lan Controller:
- Dragon RTL8125BG
Line-in:
- Yes
Maximum Internal Memory:
- 256 GB
Mb-format:
- ATX
Mb-socket:
- LGA1851
Memory Channels:
- Dual-channel
Memory Slots Type:
- DIMM
Microphone In:
- Yes
Motherboard Chipset:
- Intel Z890
Motherboard Chipset Family:
- Intel
Motherboard Form Factor:
- ATX
Number Of Chassis Fan Connectors:
- 5
Number Of Cpu Fan Connectors:
- 2
Number Of Hdds Supported:
- 4
Number Of M.2 (m) Slots:
- 4
Number Of Memory Slots:
- 4
Number Of Sata Iii Connectors:
- 4
Number Of Storage Drives Supported:
- 8
Onboard-cpu:
- No
Pci:
- 0
Pci Express X1 (gen 4.x) Slots:
- 1
Pci Express X16 (gen 5.x) Slots:
- 1
Pci Express X4 (gen 4.x) Slots:
- 2
Pci-ex1:
- 1
Pci-ex16:
- 2
Processor Manufacturer:
- Intel
Processor Socket:
- LGA 1851 (Socket V1)
Producator:
ASROCK
Raid Levels:
- 0, 1, 5, 10
Raid Support:
- Yes
Ram-slots:
- 4
Rgb Led Pin Header:
- Yes
Screws Included:
- Yes
Serial-or-paralel:
- No/No
Supported Memory Clock Speed (max):
- 9066 MHz
Supported Memory Types:
- DDR5-SDRAM
Supported Processor Sockets:
- LGA 1851
Supported Storage Drive Interfaces:
- M.2, SATA III
Supported Storage Drive Types:
- HDD & SSD
Thunderbolt Ports Quantity:
- 1
Top Wi-fi Standard:
- Not available
Tpm Connector:
- Yes
Unbuffered Memory:
- Yes
Usb 2.0 Connectors:
- 2
Usb 2.0 Ports Quantity:
- 4
Usb 3.2 Gen 1 (3.1 Gen 1) Connectors:
- 2
Usb 3.2 Gen 1 (3.1 Gen 1) Type-a Ports Quantity:
- 2
Usb 3.2 Gen 1 (3.1 Gen 1) Type-c Ports Quantity:
- 0
Usb 3.2 Gen 2 (3.1 Gen 2) Connectors:
- 0
Usb 3.2 Gen 2 (3.1 Gen 2) Type-a Ports Quantity:
- 1
Usb 3.2 Gen 2 (3.1 Gen 2) Type-c Ports Quantity:
- 0
Usb 3.2 Gen 2x2 Connectors:
- 1
Usb 3.2 Gen 2x2 Type-c Ports Quantity:
- 1
Usb3:
- 4-8
Vga (d-sub) Ports Quantity:
- 0
Wi-fi:
- No
Width:
- 305 mm
Windows Operating Systems Supported:
- Windows 11 x64
Descriere
Placa de Baza ASROCK Z890 PRO-A LGA1851, 4x DDR5, 1x HDMI 1x DP 1x Intel Thunderbolt, 1x PCIE 5.0 x16 2x PCIE 4.0 x4 1x PCIE 4.0 x1, 5x M.2, 4x SATA 6GB/s, ATX
