Mb asus tuf gaming b650-plus
Conectează-te ca să te putem notifica când primești un răspuns
Specificații
12v Power Connector:
- Yes
Atx Power Connector (24-pin):
- Yes
Audio Output Channels:
- 7.1 channels
Back-to-bios Button:
- Yes
Bios Memory Size:
- 256 Mbit
Bios Type:
- UEFI AMI
Compatible Processor Series:
- AMD Ryzen 7000 Series
Component For:
- PC
Cpu Fan Connector:
- Yes
Depth:
- 244 mm
Displayport Version:
- 1.4
Displayports Quantity:
- 1
Dvi-d Ports Quantity:
- 0
Ecc сompatibility:
- ECC & Non-ECC
Eps Power Connector (8-pin):
- Yes
Ethernet Interface Type:
- 2.5 Gigabit Ethernet
Ethernet Lan:
- Yes
Ethernet Lan (rj-45) Ports:
- 1
Front Panel Audio Connector:
- Yes
Hdmi Ports Quantity:
- 1
Hdmi Version:
- 2.1
Headphone Outputs:
- 1
Line-in:
- Yes
Maximum Internal Memory:
- 128 GB
Mb-format:
- ATX
Mb-socket:
- AM5
Memory Channels:
- Dual-channel
Memory Slots Type:
- DIMM
Microphone In:
- Yes
Motherboard Chipset:
- AMD B650
Motherboard Chipset Family:
- AMD
Motherboard Form Factor:
- ATX
Number Of Chassis Fan Connectors:
- 4
Number Of Com Connectors:
- 1
Number Of M.2 (m) Slots:
- 3
Number Of Memory Slots:
- 4
Number Of Sata Iii Connectors:
- 4
Onboard-cpu:
- No
Package Depth:
- 273 mm
Package Height:
- 68 mm
Package Weight:
- 1.36 kg
Package Width:
- 338 mm
Parallel Processing Technology Support:
- Not supported
Pci:
- 0
Pci Express X16 (gen 4.x) Slots:
- 2
Pci Express X4 (gen 1.x) Slots:
- 2
Pci-ex1:
- 2
Pci-ex16:
- 2
Power Source Type:
- ATX
Processor Manufacturer:
- AMD
Processor Socket:
- Socket AM5
Producator:
Asus
Raid Levels:
- 0, 1, 10
Raid Support:
- Yes
Ram-slots:
- 4
Rgb Led Pin Header:
- Yes
Serial-or-paralel:
- No/No
Supported Memory Clock Speed (max):
- 6400 MHz
Supported Memory Clock Speeds:
- 4800,5000,5200,5400,5600,5800,6000,6200,6400 MHz
Supported Memory Types:
- DDR5-SDRAM
Supported Processor Sockets:
- Socket AM5
Supported Storage Drive Interfaces:
- M.2, SATA III
Supported Storage Drive Types:
- HDD & SSD
Thunderbolt Headers:
- 1
Unbuffered Memory:
- Yes
Usb 2.0 Connectors:
- 2
Usb 2.0 Ports Quantity:
- 4
Usb 3.2 Gen 1 (3.1 Gen 1) Connectors:
- 2
Usb 3.2 Gen 1 (3.1 Gen 1) Type-a Ports Quantity:
- 0
Usb 3.2 Gen 1 (3.1 Gen 1) Type-c Ports Quantity:
- 0
Usb 3.2 Gen 2 (3.1 Gen 2) Connectors:
- 0
Usb 3.2 Gen 2 (3.1 Gen 2) Type-a Ports Quantity:
- 2
Usb 3.2 Gen 2 (3.1 Gen 2) Type-c Ports Quantity:
- 1
Usb 3.2 Gen 2x2 Type-c Ports Quantity:
- 1
Usb3:
- 4-8
Vga (d-sub) Ports Quantity:
- 0
Wi-fi:
- No
Width:
- 305 mm
Windows Operating Systems Supported:
- Windows 10, Windows 11 x64
Descriere

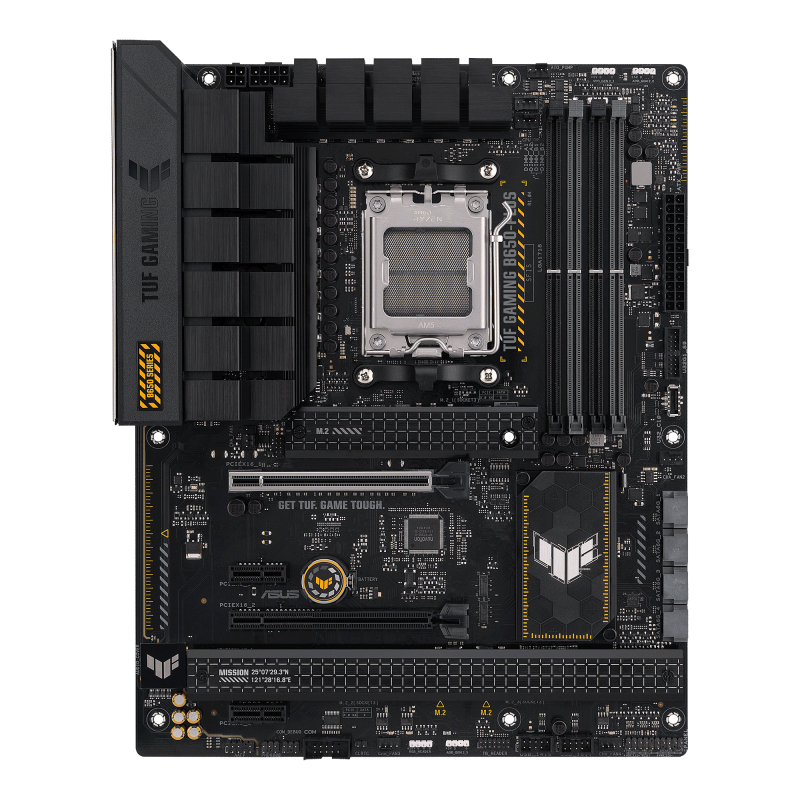

MB Asus TUF GAMING B650-PLUS
Recenzii
Nu au fost găsite recenzii
