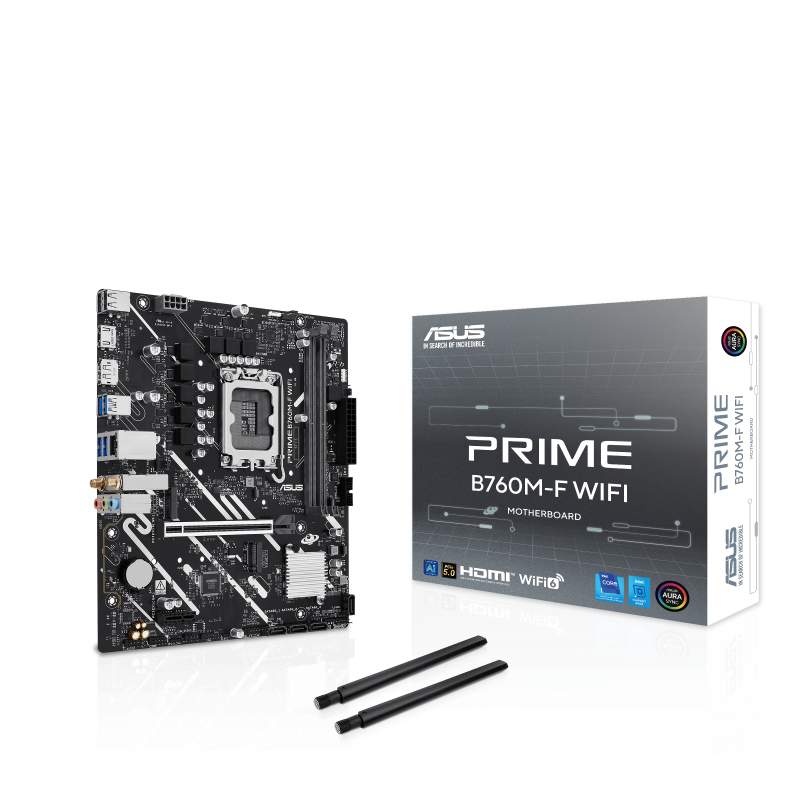

Mb asus prime b760m-f wifi
Conectează-te ca să te putem notifica când primești un răspuns
Specificații
12v Power Connector:
- Yes
Atx Power Connector (24-pin):
- Yes
Audio Output Channels:
- 7.1 channels
Bios Memory Size:
- 128 Mbit
Bios Type:
- UEFI AMI
Bluetooth Version:
- 5.3
Cables Included:
- SATA
Component For:
- PC
Cpu Fan Connector:
- Yes
Depth:
- 211 mm
Dvi-d Ports Quantity:
- 0
Ecc сompatibility:
- Non-ECC
Eps Power Connector (8-pin):
- Yes
Ethernet Interface Type:
- 2.5 Gigabit Ethernet
Ethernet Lan:
- Yes
Ethernet Lan (rj-45) Ports:
- 1
Front Panel Audio Connector:
- Yes
Hdmi Ports Quantity:
- 1
Height:
- 36 mm
Maximum Internal Memory:
- 96 GB
Maximum Number Of Smp Processors:
- 1
Mb-format:
- micro-ATX
Mb-socket:
- 1700
Memory Channels:
- Dual-channel
Memory Slots Type:
- DIMM
Motherboard Chipset:
- Intel B760
Motherboard Chipset Family:
- Intel
Motherboard Form Factor:
- micro ATX
Number Of Chassis Fan Connectors:
- 1
Number Of Com Connectors:
- 1
Number Of Hdds Supported:
- 4
Number Of M.2 (m) Slots:
- 2
Number Of Memory Slots:
- 2
Number Of Sata Iii Connectors:
- 4
Number Of Storage Drives Supported:
- 6
Onboard-cpu:
- Yes
Package Depth:
- 263 mm
Package Height:
- 51.5 mm
Package Weight:
- 877 g
Package Width:
- 270 mm
Parallel Processing Technology Support:
- Not supported
Pci:
- 3
Pci Express X1 (gen 4.x) Slots:
- 2
Pci Express X16 (gen 4.x) Slots:
- 1
Pci-ex16:
- 3
Processor Manufacturer:
- Intel
Processor Socket:
- LGA 1700
Producator:
Asus
Ps/2 Ports Quantity:
- 1
Raid Levels:
- 0, 1, 5, 10
Raid Support:
- Yes
Rgb Led Pin Header:
- Yes
S/pdif Out Connector:
- Yes
S/pdif Out Port:
- Yes
Supported Memory Clock Speed (max):
- 5333 MHz
Supported Memory Clock Speeds:
- 4800,5000,5200,5400,5600,5800,6000,6200,6400,6600,6800,7000,7200,7600,7800,8000 MHz
Supported Memory Types:
- DDR5-SDRAM
Supported Processor Sockets:
- LGA 1700
Supported Storage Drive Interfaces:
- M.2, SATA III
Supported Storage Drive Types:
- HDD & SSD
Top Wi-fi Standard:
- Wi-Fi 6 (802.11ax)
Tpm Connector:
- Yes
Unbuffered Memory:
- Yes
Usb 2.0 Connectors:
- 2
Usb 2.0 Ports Quantity:
- 2
Usb 3.2 Gen 1 (3.1 Gen 1) Connectors:
- 1
Usb 3.2 Gen 1 (3.1 Gen 1) Type-a Ports Quantity:
- 4
Usb 3.2 Gen 1 (3.1 Gen 1) Type-c Ports Quantity:
- 0
Usb 3.2 Gen 2 (3.1 Gen 2) Connectors:
- 0
Usb 3.2 Gen 2 (3.1 Gen 2) Type-a Ports Quantity:
- 0
Usb 3.2 Gen 2 (3.1 Gen 2) Type-c Ports Quantity:
- 0
Usb3:
- 4-8
Vga (d-sub) Ports Quantity:
- 1
Weight:
- 496 g
Wi-fi:
- Yes
Width:
- 244 mm
Windows Operating Systems Supported:
- Windows 10 x64, Windows 11
Comunicatii
Bluetooth:
Yes
Descriere
PLaca de baza ASUS PRIME B760M-F WIFI. Processor manufacturer: Intel, Processor socket: LGA 1700, Compatible processor series: Intel® Celeron®, Intel® Pentium® Gold, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™.... Supported memory types: DDR5-SDRAM, Maximum internal memory: 96 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 5, 10. Ethernet interface type: 2.5 Gigabit Ethernet, Top Wi-Fi standard: Wi-Fi 6 (802.11ax). Component for: PC, Motherboard form factor: micro ATX, Motherboard chipset family: Intel
