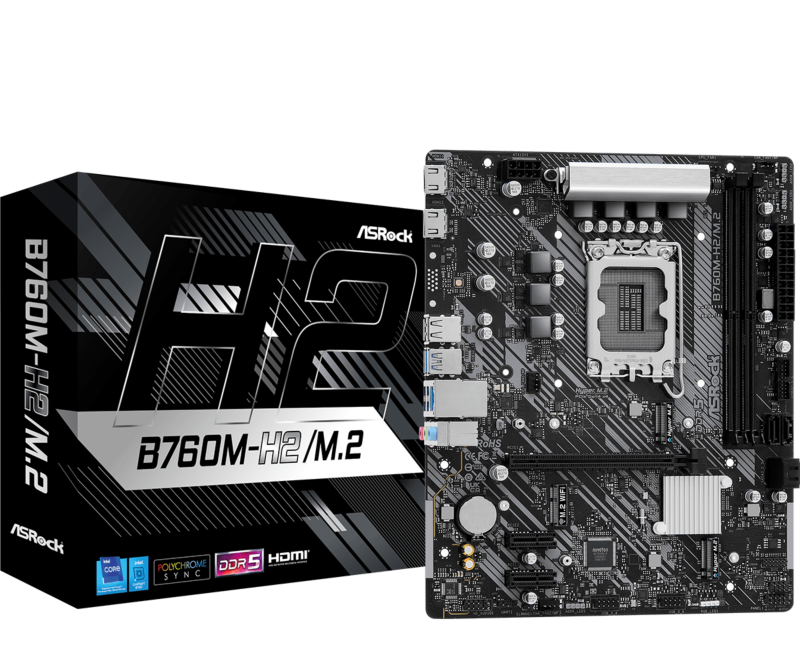

Mb asrock b760m-h2/m.2 ddr5
Conectează-te ca să te putem notifica când primești un răspuns
Specificații
Atx Power Connector (24-pin):
- Yes
Audio Chip:
- Realtek ALC897
Audio Output Channels:
- 7.1 channels
Bios Memory Size:
- 128 Mbit
Bios Type:
- UEFI AMI
Cables Included:
- SATA
Certification:
- - FCC, CE - ErP/EuP ready (ErP/EuP ready power supply is required)
Chassis Intrusion Connector:
- Yes
Compatible Processor Series:
- Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9
Component For:
- PC
Cpu Fan Connector:
- Yes
Depth:
- 201 mm
Dvi-d Ports Quantity:
- 0
Ecc сompatibility:
- Non-ECC
Eps Power Connector (8-pin):
- Yes
Ethernet Interface Type:
- 2.5 Gigabit Ethernet
Ethernet Lan:
- Yes
Ethernet Lan (rj-45) Ports:
- 1
Front Panel Connector:
- Yes
Hdcp:
- Yes
Hdmi Ports Quantity:
- 2
Hdmi Version:
- 2.1
Line-in:
- Yes
Maximum Internal Memory:
- 128 GB
Maximum Internal Memory Supported By Processor:
- 128 GB
Maximum Number Of Smp Processors:
- 1
Mb-format:
- micro-ATX
Mb-socket:
- 1700
Memory Channels:
- Dual-channel
Memory Slots Type:
- DIMM
Microphone In:
- Yes
Motherboard Chipset:
- Intel B760
Motherboard Chipset Family:
- Intel
Motherboard Form Factor:
- micro ATX
Number Of Hdds Supported:
- 6
Number Of M.2 (m) Slots:
- 2
Number Of Memory Slots:
- 2
Number Of Sata Iii Connectors:
- 4
Number Of Storage Drives Supported:
- 4
Onboard-cpu:
- No
Parallel Processing Technology Support:
- Not supported
Pci:
- 0
Pci Express X1 (gen 3.x) Slots:
- 2
Pci Express X16 (gen 4.x) Slots:
- 1
Pci-ex1:
- 2
Pci-ex16:
- 1
Processor Manufacturer:
- Intel
Processor Socket:
- LGA 1700
Producator:
ASROCK
Ps/2 Ports Quantity:
- 1
Raid Levels:
- 0, 1, 5, 10
Raid Support:
- Yes
Ram-slots:
- 2
Serial-or-paralel:
- No/No
Supported Memory Clock Speed (max):
- 7200 MHz
Supported Memory Clock Speeds:
- 5600,6800,7200 MHz
Supported Memory Types:
- DDR5-SDRAM
Supported Processor Sockets:
- LGA 1700
Supported Storage Drive Interfaces:
- M.2, SATA III
Total Number Of Sata Connectors:
- 4
Tpm Connector:
- Yes
Unbuffered Memory:
- Yes
Usb 2.0 Connectors:
- 4
Usb 2.0 Ports Quantity:
- 2
Usb 3.2 Gen 1 (3.1 Gen 1) Connectors:
- 2
Usb 3.2 Gen 1 (3.1 Gen 1) Type-a Ports Quantity:
- 4
Usb 3.2 Gen 1 (3.1 Gen 1) Type-c Ports Quantity:
- 1
Usb 3.2 Gen 2 (3.1 Gen 2) Connectors:
- 0
Usb 3.2 Gen 2 (3.1 Gen 2) Type-a Ports Quantity:
- 0
Usb 3.2 Gen 2 (3.1 Gen 2) Type-c Ports Quantity:
- 0
Usb3:
- 4-8
Vga (d-sub) Ports Quantity:
- 0
Wi-fi:
- No
Width:
- 244 mm
Windows Operating Systems Supported:
- Windows 10 x64, Windows 11 x64
Descriere
MB Asrock B760M-H2/M.2 DDR5
