Asus tuf gaming b760m-plus ii. processor manufacturer: intel, processor socket: lga 1700, compatible processor series: intel® celeron®, intel® pentium® gold, intel® core™ i3, intel® core™ i5, intel® core™.... supported memory types: ddr5-sdram, maximum in
Conectează-te ca să te putem notifica când primești un răspuns
Specificații
12v Power Connector:
- Yes
Atx Power Connector (24-pin):
- Yes
Audio Output Channels:
- 7.1 channels
Bios Memory Size:
- 128 Mbit
Bios Type:
- UEFI AMI
Cables Included:
- SATA
Component For:
- PC
Cpu Fan Connector:
- Yes
Depth:
- 244 mm
Displayports Quantity:
- 1
Dvi-d Ports Quantity:
- 0
Ecc сompatibility:
- Non-ECC
Eps Power Connector (8-pin):
- Yes
Ethernet Interface Type:
- 2.5 Gigabit Ethernet
Ethernet Lan:
- Yes
Front Panel Audio Connector:
- Yes
Hdmi Ports Quantity:
- 1
Headphone Outputs:
- 1
Height:
- 50 mm
Maximum Internal Memory:
- 192 GB
Memory Channels:
- Dual-channel
Memory Slots Type:
- DIMM
Microphone In:
- Yes
Motherboard Chipset:
- Intel B760
Motherboard Chipset Family:
- Intel
Motherboard Form Factor:
- micro ATX
Number Of Chassis Fan Connectors:
- 3
Number Of Hdds Supported:
- 4
Number Of M.2 (m) Slots:
- 3
Number Of Memory Slots:
- 4
Number Of Sata Iii Connectors:
- 4
Number Of Storage Drives Supported:
- 7
Package Depth:
- 265 mm
Package Height:
- 71 mm
Package Weight:
- 1.65 kg
Package Width:
- 280 mm
Parallel Processing Technology Support:
- Not supported
Pci Express X1 (gen 3.x) Slots:
- 1
Pci Express X16 (gen 5.x) Slots:
- 1
Pci Express X4 (gen 4.x) Slots:
- 1
Processor Manufacturer:
- Intel
Processor Socket:
- LGA 1700
Producator:
Asus
Raid Levels:
- 0, 1, 5, 10
Raid Support:
- Yes
S/pdif Out Port:
- Yes
Screws Included:
- Yes
Supported Memory Clock Speed (max):
- 7800 MHz
Supported Memory Clock Speeds:
- 7800,7600,7400,7200,7000,6800,6600,6400,6200,6000,5800,5600,5400,5200,5000,4800 MHz
Supported Memory Types:
- DDR5-SDRAM
Supported Processor Sockets:
- LGA 1700
Supported Storage Drive Interfaces:
- M.2, SATA III
Supported Storage Drive Types:
- HDD & SSD
Thunderbolt Headers:
- 1
Unbuffered Memory:
- Yes
Usb 2.0 Connectors:
- 3
Usb 2.0 Ports Quantity:
- 4
Usb 3.2 Gen 1 (3.1 Gen 1) Connectors:
- 1
Usb 3.2 Gen 1 (3.1 Gen 1) Type-a Ports Quantity:
- 2
Usb 3.2 Gen 1 (3.1 Gen 1) Type-c Ports Quantity:
- 0
Usb 3.2 Gen 2 (3.1 Gen 2) Connectors:
- 1
Usb 3.2 Gen 2 (3.1 Gen 2) Type-a Ports Quantity:
- 1
Usb 3.2 Gen 2 (3.1 Gen 2) Type-c Ports Quantity:
- 0
Usb 3.2 Gen 2x2 Type-c Ports Quantity:
- 1
Vga (d-sub) Ports Quantity:
- 0
Weight:
- 982 g
Wi-fi:
- No
Width:
- 244 mm
Windows Operating Systems Supported:
- Windows 10 x64, Windows 11
Descriere

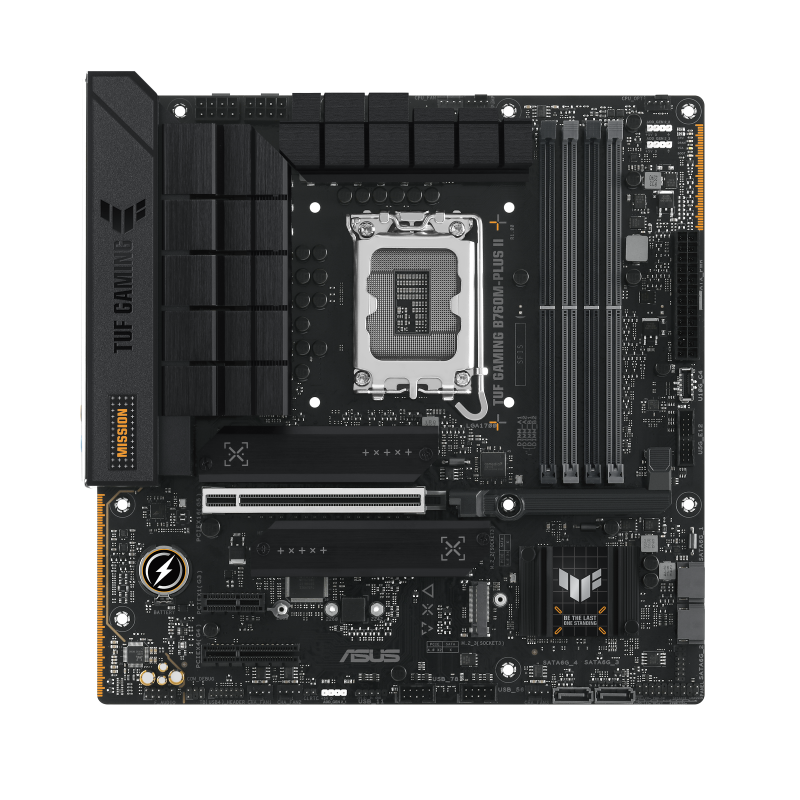

ASUS TUF GAMING B760M-PLUS II. Processor manufacturer: Intel, Processor socket: LGA 1700, Compatible processor series: Intel® Celeron®, Intel® Pentium® Gold, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™.... Supported memory types: DDR5-SDRAM, Maximum internal memory: 192 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 5, 10. Ethernet interface type: 2.5 Gigabit Ethernet. Component for: PC, Motherboard form factor: micro ATX, Motherboard chipset family: Intel
